De-Sta-Co

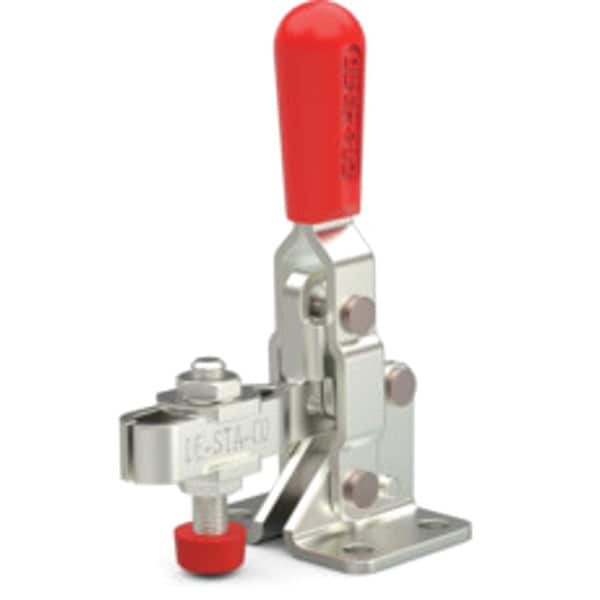

Toggle Clamp, Vert Hold, 100 Lb, H 3.08

product price: $13.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Vertical Handle Hold Down
  • Holding Capacity (Lb.) 100
  • Overall Height (In.) 3.08 in
  • Body Material Steel
  • Overall Length (In.) 2.04 in
See all product information

Product Information

Dimensions

Overall Height (In.) 3.08 in
Overall Length (In.) 2.04 in
Height Under Arm (In.) 0.63 in
Dia. (In.) 0.17 in
Thread Size M5
Arm Length 1.03 in
Overall Depth 3.08 in
Overall Length 3.53 in
Spindle Thread Size M5
Height Under Arm 0.63 in
Overall Width 2.04 in

Details

Item Toggle Clamp
Type Vertical Handle Hold Down
Holding Capacity (Lb.) 100
Body Material Steel
Spindle Material Neoprene
Includes Flanged Washer (102111), Spindle (305208-M)
Spindle Flat Cushion Neoprene
Handle 100 Degrees
Arm U-Shaped
Base Mounting Centers (In.) 0.63 x 0.94
Application Assembly, Checking Fixtures, Closures, Welding, Wood Working
Handle Orientation Vertical
Includes Locking Handle No
Mounting Holes Center to Center - Short Side 0.63 in
Holding Capacity - Maximum 100 lbf
Clamp Arm Opening Angle 100 Degrees
Tip Material Neoprene
Mounting Holes Center to Center - Long Side 0.94 in
Accommodates Workpiece Variation No
Base Mounting Style Flange
Arm Style U-Bar

Description

Toggle Clamp, Base Mounting Style Flange, Handle Orientation Vertical, Holding Capacity - Maximum 100 lbf, Arm Style U-Bar, Tip Material Neoprene, Clamp Arm Opening Angle 100 Degrees , Arm Length 1.03 in, Height Under Arm 0.63 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Closures, Welding, Wood Working, Body Material Steel, Includes Flanged Washer (102111), Spindle (305208-M), Mounting Holes Center to Center - Long Side 0.94 in
