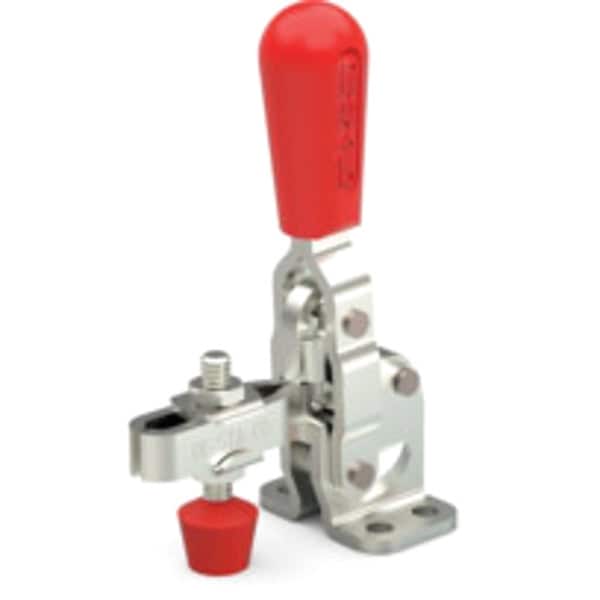

Toggle Clamp, Vert Hold, 200 Lb, H 4.33
- Mfr # 202-U
- Zoro # G1710651
product price:Â
$
18.19
/ea
Key Features
Type
Vertical Handle Hold Down
Holding Capacity (Lb.)
200
Overall Height (In.)
4.31 in
Body Material
Steel
Overall Length (In.)
2.73 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 202-U
- Zoro #
- G1710651
- UPC #
- -
- Country of Origin
- Thailand
- Item
- Toggle Clamp
- Type
- Vertical Handle Hold Down
- Holding Capacity (Lb.)
- 200
- Body Material
- Steel
- Spindle Material
- Neoprene
- Base Mounting Centers (In.)
- 0.50 x 1.06
- Handle
- 105 Degrees
- Includes
- Spindle (202208-M), Flanged Washer (215105)
- Arm
- U-Shaped
- Spindle
- Flat Cushion Neoprene
- Application
- Assembly, Checking Fixtures, Closures, Welding, Wood Working
- Arm Style
- U-Bar
- Handle Color
- Red
- Holding Capacity - Maximum
- 200 lbf
- Base Mounting Style
- Flange
- Mounting Holes Center to Center - Long Side
- 1.06 in
- Tip Material
- Neoprene
- Includes Locking Handle
- No
- Accommodates Workpiece Variation
- No
- Handle Orientation
- Vertical
- Clamp Arm Opening Angle
- 105 Degrees
- Mounting Holes Center to Center - Short Side
- 0.5 in
Description
Toggle Clamp, Base Mounting Style Flange, Handle Orientation Vertical, Holding Capacity - Maximum 200 lbf, Arm Style U-Bar, Tip Material Neoprene, Clamp Arm Opening Angle 105 Degrees , Arm Length 1.73 in, Height Under Arm 0.92 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Closures, Welding, Wood Working, Body Material Steel, Fastener Thread Size M6, Handle Color Red, Includes Spindle (202208-M), Flanged Washer (215105)
