  11. Toggle Clamp, Vert Hold, 250 Lb, H 3.91
Shop All Toggle & Latch Clamps
De-Sta-Co

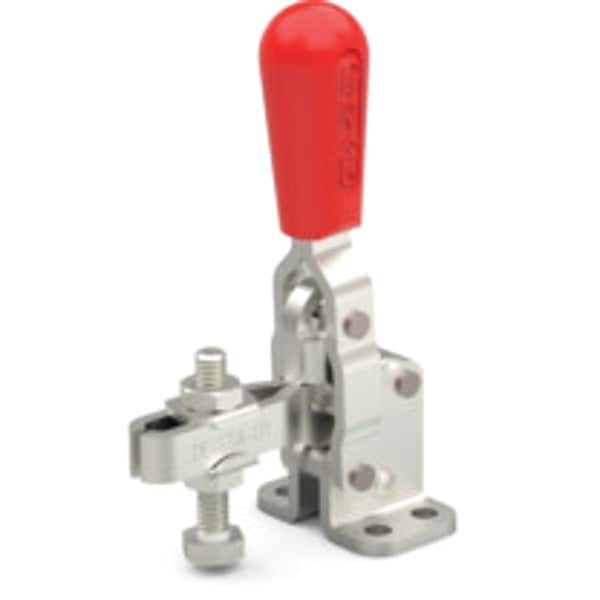

Toggle Clamp, Vert Hold, 250 Lb, H 3.91

product price: $42.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Vertical Handle Hold Down
  • Holding Capacity (Lb.) 250
  • Overall Height (In.) 4.31 in
  • Body Material Stainless Steel
  • Overall Length (In.) 2.73 in
See all product information

Product Information

Dimensions

Overall Height (In.) 4.31 in
Overall Length (In.) 2.73 in
Height Under Arm (In.) 0.93 in
Thread Size 1/4 - 20
Dia. (In.) 0.22 in
Overall Length 2.73 in
Height Under Arm 0.92 in
Arm Length 1.73 in
Fastener Thread Size 1/4"-20
Spindle Thread Size 1/4"-20
Overall Width 3.56 in
Overall Depth 4.31 in

Details

Item Toggle Clamp
Type Vertical Handle Hold Down
Holding Capacity (Lb.) 250
Body Material Stainless Steel
Spindle Material Stainless Steel
Base Mounting Centers (In.) 0.50 x 1.06
Arm U-Shaped
Spindle Flat Cushion Neoprene
Includes Spindle (202943), Flanged Washer (215905)
Handle 105 Degrees
Application Assembly, Checking Fixtures, Clamping, Closures, Food Processing, Woodworking
Tip Material Stainless Steel
Accommodates Workpiece Variation No
Holding Capacity - Maximum 250 lbf
Mounting Holes Center to Center - Long Side 1.06 in
Mounting Holes Center to Center - Short Side 0.5 in
Arm Style U-Bar
Base Mounting Style Flange
Handle Orientation Vertical
Includes Locking Handle No
Clamp Arm Opening Angle 105 Degrees

Description

Toggle Clamp, Base Mounting Style Flange, Handle Orientation Vertical, Holding Capacity - Maximum 250 lbf, Arm Style U-Bar, Tip Material Stainless Steel, Clamp Arm Opening Angle 105 Degrees , Arm Length 1.73 in, Height Under Arm 0.92 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Clamping, Closures, Food Processing, Woodworking, Body Material Stainless Steel, Fastener Thread Size 1/4 In.-20
