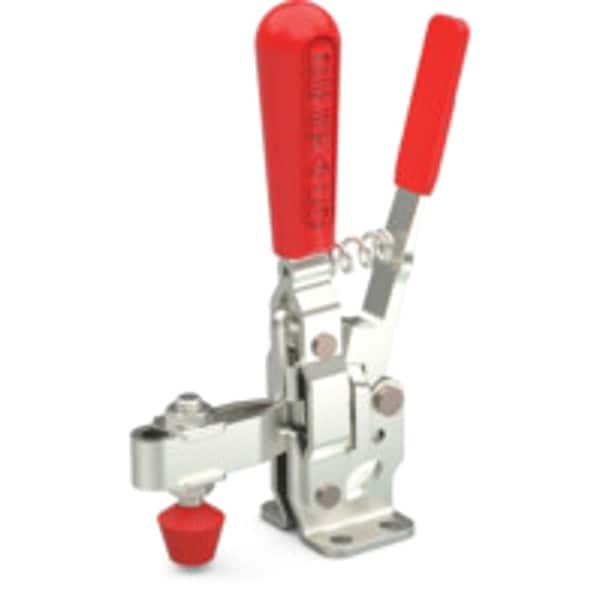

Toggle Clamp, Vert Hold, 375 Lb, H 6.93
Mfr # 207-UR
Zoro # G1623246
product price:Â
$
58.45
/ea
Key Features
Type
Vertical Handle Hold Down
Holding Capacity (Lb.)
375
Overall Height (In.)
6.93 in
Body Material
Steel
Overall Length (In.)
4.58 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 207-UR
- Zoro #
- G1623246
- UPC #
- -
- Country of Origin
- United States
- Item
- Toggle Clamp
- Type
- Vertical Handle Hold Down
- Holding Capacity (Lb.)
- 375
- Body Material
- Steel
- Spindle Material
- Neoprene
- Spindle
- Flat Cushion Neoprene
- Handle
- 99 Degrees
- Base Mounting Centers (In.)
- 0.75 x 1.25
- Includes
- Spindle (225208-M), Flanged Washer (507107)
- Arm
- U-Shaped
- Application
- Assembly, Checking Fixtures, Clamping, Closures, Woodworking
- Handle Orientation
- Vertical
- Holding Capacity - Maximum
- 375 lbf
- Mounting Holes Center to Center - Long Side
- 1.25 in
- Clamp Arm Opening Angle
- 99 Degrees
- Includes Locking Handle
- Yes
- Accommodates Workpiece Variation
- No
- Mounting Holes Center to Center - Short Side
- 0.75 in
- Tip Material
- Neoprene
- Base Mounting Style
- Flange
- Arm Style
- U-Bar
Description
Toggle Clamp, Base Mounting Style Flange, Handle Orientation Vertical, Holding Capacity - Maximum 375 lbf, Arm Style U-Bar, Tip Material Neoprene, Clamp Arm Opening Angle 99 Degrees , Arm Length 2.14 in, Height Under Arm 1.25 in, Includes Locking Handle Yes, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Clamping, Closures, Woodworking, Body Material Steel, Fastener Thread Size M8, Includes Spindle (225208-M), Flanged Washer (507107)
