Shop All Toggle & Latch Clamps
De-Sta-Co

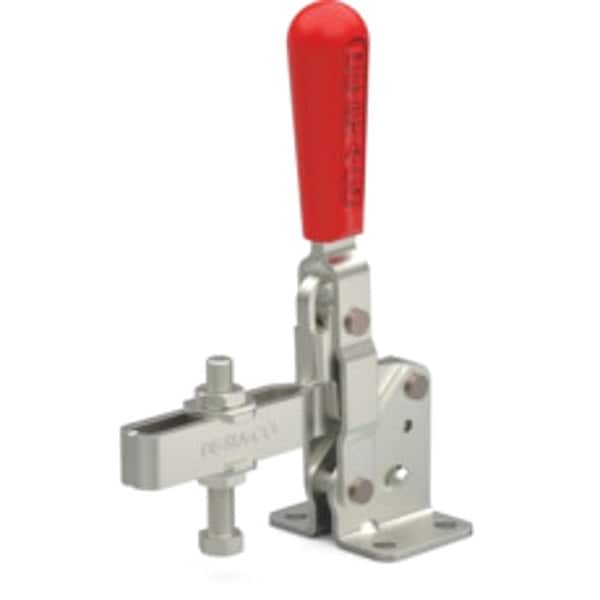

Toggle Clamp, Vert Hold, 750 Lb, H 7.65

product price: $86.49
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Vertical Handle Hold Down
  • Holding Capacity (Lb.) 750
  • Overall Height (In.) 8.19 in
  • Body Material Stainless Steel
  • Overall Length (In.) 5.51 in
See all product information

Product Information

Dimensions

Overall Height (In.) 8.19 in
Overall Length (In.) 5.51 in
Height Under Arm (In.) 1.67 in
Thread Size 3/8 - 16
Dia. (In.) 0.33 in
Spindle Thread Size 3/8"-16
Arm Length 3.62 in
Overall Width 6.02 in
Fastener Thread Size 3/8"-16
Height Under Arm 1.69 in
Overall Length 5.54 in
Overall Depth 8.19 in

Details

Item Toggle Clamp
Type Vertical Handle Hold Down
Holding Capacity (Lb.) 750
Body Material Stainless Steel
Spindle Material Stainless Steel
Arm U-Shaped
Includes Flanged Washer (235906), Spindle (237943)
Handle 103 Degrees
Spindle Flat Cushion Neoprene
Base Mounting Centers (In.) 1.25 x 1.77
Application Assembly, Checking Fixtures, Clamping, Closures, Food Processing, Welding, Woodworking
Clamp Arm Opening Angle 103 Degrees
Arm Style U-Bar
Base Mounting Style Flange
Mounting Holes Center to Center - Long Side 1.77 in
Tip Material Stainless Steel
Includes Locking Handle No
Handle Orientation Vertical
Mounting Holes Center to Center - Short Side 1.26 in
Holding Capacity - Maximum 750 lbf
Accommodates Workpiece Variation No

Description

Toggle Clamp, Base Mounting Style Flange, Handle Orientation Vertical, Holding Capacity - Maximum 750 lbf, Arm Style U-Bar, Tip Material Stainless Steel, Clamp Arm Opening Angle 103 Degrees , Arm Length 3.62 in, Height Under Arm 1.69 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Clamping, Closures, Food Processing, Welding, Woodworking, Body Material Stainless Steel, Fastener Thread Size 3/8 In.-16
