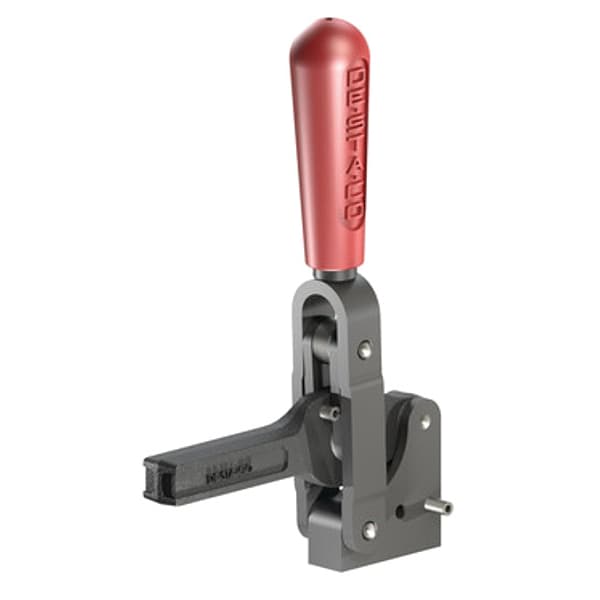

Vertical Hold Down Clamp, 750 lb Cap
Mfr # 5905-B
Zoro # G5178223
product price: $76.39
/ea
Free Shipping & Returns
Key Features
Type
Flanged Bar
Holding Capacity (Lb.)
750
Overall Height (In.)
6.24 in
Body Material
Forged Steel
Overall Length (In.)
4.02 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5905-B
Zoro #
G5178223
UPC #
697437979810
Country of Origin
Thailand
Dimensions
Overall Height (In.)
6.24 in
Overall Length (In.)
4.02 in
Height Under Arm (In.)
1.27 in
Arm Length
2.49 in
Overall Length
4.02 in
Height Under Arm
1.27 in
Overall Width
2.13 in
Overall Depth
6.75 in
Details
Item
Vertical Hold-Down Clamp
Type
Flanged Bar
Holding Capacity (Lb.)
750
Body Material
Forged Steel
Handle
Vertical
Arm
Solid, Can Machine Or Weld
Application
Assembly, Checking Fixtures, Clamping, Welding
Accommodates Workpiece Variation
No
Clamp Arm Opening Angle
135 Degrees
Holding Capacity - Maximum
750 lbf
Handle Orientation
Vertical
Base Mounting Style
Solid
Includes Locking Handle
No
Arm Style
Solid Bar
Description
Vertical Hold-Down Clamp, Base Mounting Style Solid, Handle Orientation Vertical, Holding Capacity - Maximum 750 lbf, Arm Style Solid Bar, Tip Material Not Applicable, Clamp Arm Opening Angle 135 Degrees , Arm Length 2.49 in, Height Under Arm 1.27 in, Includes Locking Handle No, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Clamping, Welding, Body Material Forged Steel, Overall Depth 6.75 in, Overall Length 4.02 in, Overall Width 2.13 in
