Shop DEKKER VACUUM TECHNOLOGIES

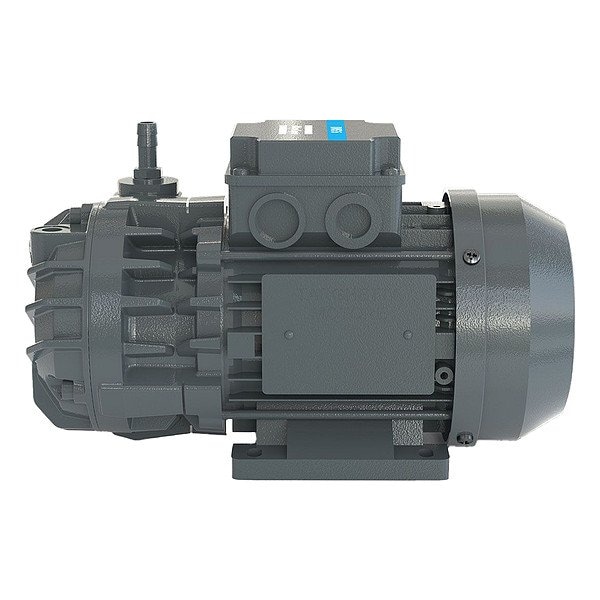

Vacuum Pump, 0.15 kW, 110V AC

  • Mfr # DVS5 110V/1/60

  • Zoro # G516608100

product price:
$
1,571.99
/ea
Free Shipping & Returns

Key Features

Voltage
110V AC
Overall Length
8.89 in
Overall Height
5.43 in
Overall Width
5.47 in
Series
DVS
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DVS5 110V/1/60
Zoro #
G516608100
UPC #
-
Country of Origin
Italy

Dimensions

Overall Length
8.89 in
Overall Height
5.43 in
Overall Width
5.47 in
Inlet Size
1/8 in
Outlet Size
1/8 in
Shaft Diameter
11/32 in
Wire Rope Length
8.89 in
Length
8.89 in

Details

Item
Vacuum Pump
Voltage
110V AC
Series
DVS
Application
CNC Clamping, Holding, Laboratory Vacuum, Lifting, Medical Systems, Moving, Packaging, Pick and Place, Pneumatic Conveying, Printing, Woodworking
Phase
Single
Maximum Discharge Pressure
0.8 bar
Weight
11.9 lb
Frequency
60 Hz
Maximum Vacuum
90 torr
Maximum Flow Rate
3.5 cfm
Includes
Exhaust Silencer, Internal Inlet Filter, Non-Return Valve
Outlet Type
BSPT
Output Power
0.15 kW
Runs Dry
Yes
Maximum Speed
3,300 RPM
Duty Cycle
Continuous
Inlet Type
BSPT
Outlet Hose/Tube ID
1/8 in
Pump Type
Rotary Vane Vacuum
Outlet Hose/Tube OD
1/8 in
Self-Priming
Yes
Vane Material
Graphite

Description

Vacuum Pump, Output Power 0.15 kW, Phase Single, Voltage 110V AC, Maximum Flow Rate 3.5 cfm, Maximum Vacuum 90 torr, Inlet Size 1/8 in, Inlet Type BSPT, Outlet Size 1/8 in, Outlet Type BSPT, Application CNC Clamping, Holding, Laboratory Vacuum, Lifting, Medical Systems, Moving, Packaging, Pick and Place, Pneumatic Conveying, Printing, Woodworking, Maximum Discharge Pressure 0.8 bar, Maximum Operating Pressure Not Applicable
