Shop DEKKER VACUUM TECHNOLOGIES

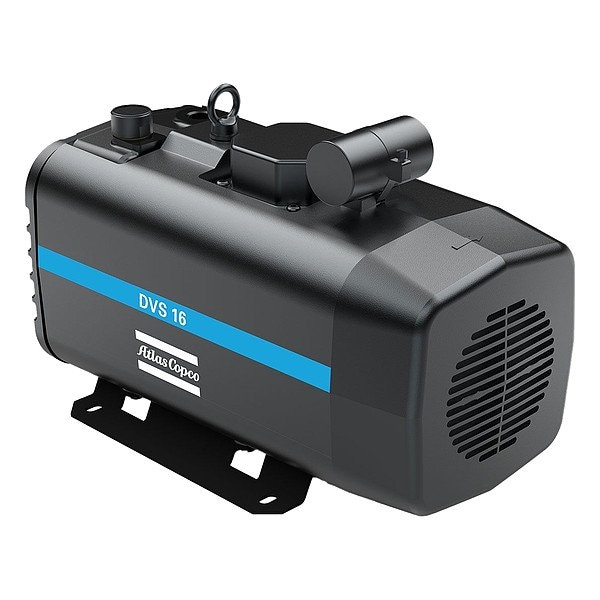

Vacuum Pump, 0.9 kW, 230/460V AC

  • Mfr # DVS16 230-460V/3/60

  • Zoro # G916608113

product price:
$
3,273.99
/ea
Free Shipping & Returns

Key Features

Voltage
230/460V AC
Overall Width
8.11 in
Duty Cycle
Continuous
Maximum Vacuum
90 torr
Series
DVS
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DVS16 230-460V/3/60
Zoro #
G916608113
UPC #
-
Country of Origin
Italy

Dimensions

Overall Width
8.11 in
Inlet Size
1/2 in
Overall Height
9.6 in
Overall Length
16.22 in
Outlet Size
1/2 in
Wire Rope Length
16.22 in
Length
16.22 in

Details

Item
Vacuum Pump
Voltage
230/460V AC
Duty Cycle
Continuous
Maximum Vacuum
90 torr
Series
DVS
Weight
72.7 lb
Phase
Three
Maximum Discharge Pressure
1 bar
Runs Dry
Yes
Frequency
60 Hz
Maximum Flow Rate
11 cfm
Output Power
0.9 kW
Inlet Type
BSPT
Outlet Type
BSPT
Application
CNC Clamping, Holding, Laboratory Vacuum, Lifting, Medical Systems, Moving, Packaging, Pick and Place, Pneumatic Conveying, Printing, Woodworking
Includes
Energy Efficient LE3 Electric Motor, Exhaust Silencer, Internal Inlet Filter, Noise Containing Canopy, Non-Return Valve
Maximum Speed
1,700 RPM
Outlet Hose/Tube OD
1/2 in
Outlet Hose/Tube ID
1/2 in
Vane Material
Graphite
Pump Type
Rotary Vane Vacuum
Self-Priming
Yes

Description

Vacuum Pump, Output Power 0.9 kW, Phase Three, Voltage 230/460V AC, Maximum Flow Rate 11 cfm, Maximum Vacuum 90 torr, Inlet Size 1/2 in, Inlet Type BSPT, Outlet Size 1/2 in, Outlet Type BSPT, Application CNC Clamping, Holding, Laboratory Vacuum, Lifting, Medical Systems, Moving, Packaging, Pick and Place, Pneumatic Conveying, Printing, Woodworking, Maximum Discharge Pressure 1 bar, Maximum Operating Pressure Not Applicable
