Shop DELAVAN FLUID POWER

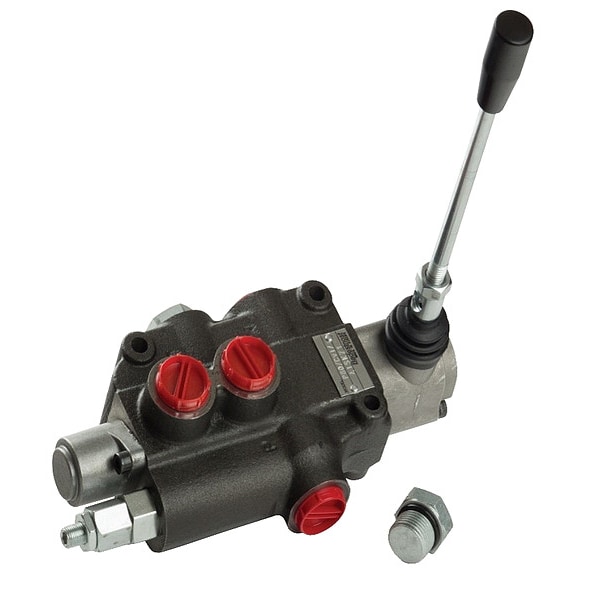

Hydraulic Valve, 16 gpm, Four-Way

  • Mfr # MBV1SP-60

  • Zoro # G110865121

product price:
$
208.99
/ea
Free Shipping & Returns

Key Features

Valve Type
Spool
Body Material
Cast Iron
Number of Ways
Four-Way
Number of Positions
Three Positions
Spool Action
Spring Center to Neutral
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MBV1SP-60
Zoro #
G110865121
UPC #
-
Country of Origin
Bulgaria

Dimensions

Work Connection Size
3/4 in
Handle Length
6.5 in
Pressure Connection Size
7/8 in
Tank Connection Dash Size
14
Pressure Connection Dash Size
14
Tank Connection Size
7/8 in
Work Connection Dash Size
16

Details

Item
Hydraulic Directional Valve
Valve Type
Spool
Body Material
Cast Iron
Number of Ways
Four-Way
Number of Positions
Three Positions
Spool Action
Spring Center to Neutral
Work Connection Type
SAE O-Ring Boss
Supply Pressure - Maximum
3,000 psi
Port Connections
(2) Work, Inlet, Outlet
Pressure Setting - Minimum
450 psi
Includes Seals
Seals Included
Flow Rate - Maximum
16 gpm
Spool Material
Steel
Work Connection Gender
Female
Adjustment Method
Screw
Handle Type
Lever
For Media
Oil
Load Holding
Not Load Holding
Pressure Connection Type
SAE O-Ring Boss
Actuation Mechanism
Manual
Cylinder Compatibility
Double-Acting
Relief Valve Pressure Setting - Maximum
3,500 psi
Valve Control
Directional Control
Relief Valve Pressure Setting - Minimum
450 psi
Center Position
Open Center
Circuit Section
Parallel
Operating Temperature - Minimum
-4 Degrees F
Tank Connection Type
SAE O-Ring Boss
Fluid Viscosity - Maximum
1,000 SUS
Mounting
Inline
Pressure Setting - Maximum
3,500 psi
Flow Rate - Minimum
1 gpm
Number of Spools
1
Operating Temperature - Maximum
175 Degrees F
Control Direction
Two-Way
Pressure Connection Gender
Female
Tank Connection Gender
Female
Body Finish
Paint

Description

Hydraulic Directional Valve, Flow Rate - Maximum 16 gpm, Number of Positions Three Positions, Number of Ways Four-Way, Pressure Setting - Maximum 3,500 psi, Spool Action Spring Center to Neutral, Port Connections (2) Work, Inlet, Outlet, Center Position Open Center, Series Not Applicable, Number of Spools 1, Pressure Setting - Minimum 450 psi, Actuation Mechanism Manual, Includes Seals Seals Included, Mounting Inline, Pressure Connection Gender Female
