Delhi

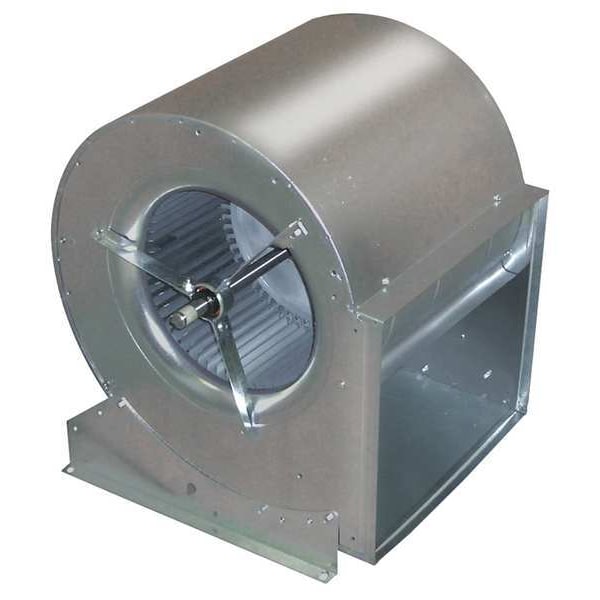

Blower, BD, Less Motor, 11-9/16 Wheel

product price: $352.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wheel Dia. (In.) 11 9/16 in
  • Wheel Width (In.) 10 13/16 in
  • Type Double Inlet Forward Curve, Belt Drive, Less Motor
  • Mounting Multipostion
  • Housing Depth (In.) 16 3/4 in
See all product information

Product Information

Dimensions

Wheel Dia. (In.) 11 9/16 in
Wheel Width (In.) 10 13/16 in
Housing Depth (In.) 16 3/4 in
Discharge Height (In.) 11 3/8 in
Shaft Dia. 3/4 in
Discharge Width (In.) 13 1/8 in
Housing Width (In.) 14 1/8 in
Housing Height (In.) 17 3/8 in
Wheel Width 10 3/4 in
Wheel Diameter 11 1/2 in
Outlet Width 13 1/8 in
Overall Depth 16 3/4 in
Overall Height 19 in
Inlet Diameter 9 3/8 in
Outlet Height 11 3/8 in
Housing Width 14.1 in
Shaft Diameter 3/4 in
Housing Height 19 in
Overall Width 14 1/8 in
Housing Depth 16.7 in

Details

Item Blower
Type Double Inlet Forward Curve, Belt Drive, Less Motor
Mounting Multipostion
Max. Ambient Temp. (F) 104 Degrees F
Housing Material Steel
Bearing Type Ball
Wheel Material Steel
Max. Inlet Temp. (Deg. F) 250 Degrees F
Housing Finish Galvanized Steel
Application Clean-Air Heating, Cooling, Ventilating Systems
Drive Type Belt Drive
Wheel Type Forward-Curved
Rotation CW/CCW
Includes Mounting Hardware
Number of Discharge Positions 4
Chemical Resistant No
Maximum Ambient Temperature 250 Degrees F
For Location Indoor
Maximum Inlet Air Temperature 250 Degrees F
Resistance Properties Corrosion Resistant
OEM Replacement No
For High-Static Pressure Applications Yes
Maximum Motor Horsepower 7 1/2 hp
Maximum Static Pressure 2 1/2 in wc
Includes Mounting Hardware Yes
Corrosion Resistant Yes
Housing Material Finish Galvanized
Mount Type Multiposition
Assembly Unassembled
For Air Type General/Clean
Discharge Position Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Outlet Shape Rectangular
Minimum Airflow 4,500 cfm
Maximum Fan Speed 2,500 RPM
Includes Drive Package No
Wheel Material Finish Zinc Plated
Maximum Airflow 5,500 cfm
Features Base Feet can be Mounted for Various Discharge Positions, Blower Housings Have Extruded Holes to Give Greater Holding Power for Mounting Base Sides and Motor Bracket, Capacity Range 200 to 8000 cfm, Shaft Dimensions and Finish are Carefully Controlled to Ensure Quiet, Trouble Free Operation, Shafts for Ball Bearing Models have Keywayed Ends, the Blower Wheel has an Exclusive Centre Disc which Allows Blowers to be Used Safely at Speeds Well Above Any Normal Requirement
Minimum Motor Horsepower 1/4 hp
Housing Material Grade G90
Number of Inlets 2
Market Commercial, Industrial, Residential
Flange Type Non-Flanged
Includes Motor No
Minimum Ambient Temperature -65 Degrees F
Spark Resistant Construction Type Not Rated
Hazardous Location Application No

Description

Blower, Wheel Type Forward-Curved, Drive Type Belt Drive, Includes Drive Package No, Assembly Unassembled, Wheel Diameter 11 1/2 in, Minimum Airflow 4,500 cfm, Maximum Airflow 5,500 cfm, Maximum Static Pressure 2 1/2 in wc, Maximum Inlet Air Temperature 250 Degrees F, Shaft Diameter 3/4 in, Bearing Type Ball, Wheel Material Steel, Housing Material Steel, Wheel Width 10 3/4 in, Number of Inlets 2, Inlet Diameter 9 3/8 in, Outlet Shape Rectangular, Outlet Height 11 3/8 in, Outlet Width 13 1/8 in
