Shop DELHI

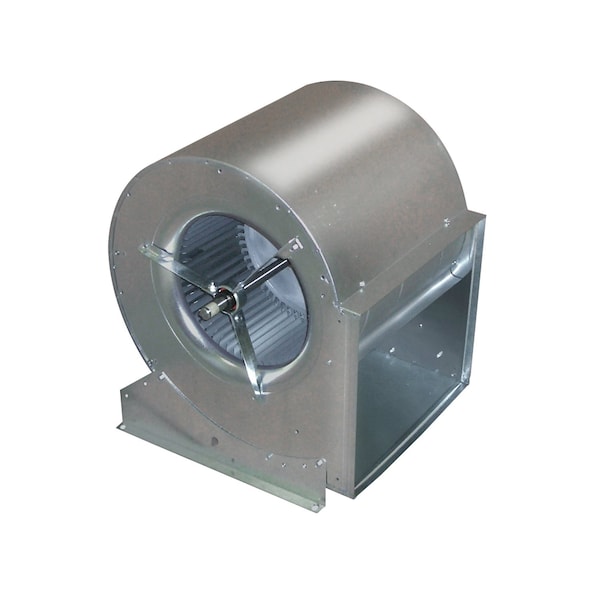

Blower, BD, Less Motor, 15-1/2 Wheel

  • Mfr # 9005477

  • Zoro # G6634564

product price:  $397.99
/ea
Additional $265.00 delivery surcharge applies per item.
See details

Key Features

Wheel Dia. (In.)
15 1/2 in
Wheel Width (In.)
10 13/16 in
Max. Inlet Temp. (Deg. F)
250 Degrees F
Rotation
CW/CCW
Wheel Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9005477
Zoro #
G6634564
UPC #
-
Country of Origin
Canada

Dimensions

Wheel Dia. (In.)
15 1/2 in
Wheel Width (In.)
10 13/16 in
Housing Height (In.)
24 1/4 in
Discharge Width (In.)
14 11/16 in
Discharge Height (In.)
15 7/8 in
Shaft Dia.
1 in
Housing Depth (In.)
22 11/16 in
Housing Width (In.)
15 11/16 in
Wheel Width
10 3/4 in
Housing Depth
22.6 in
Outlet Width
14 5/8 in
Overall Depth
22 5/8 in
Overall Height
25 3/4 in
Overall Width
15 5/8 in
Outlet Height
15 7/8 in
Inlet Diameter
12 1/2 in
Shaft Diameter
1 in
Housing Width
15.6 in
Housing Height
25.7 in
Wheel Diameter
15 1/2 in

Details

Max. Inlet Temp. (Deg. F)
250 Degrees F
Rotation
CW/CCW
Wheel Material
Steel
Item
Blower
Mounting
Multipostion
Bearing Type
Ball
Max. Ambient Temp. (F)
104 Degrees F
Type
Double Inlet Forward Curve, Belt Drive, Less Motor
Housing Finish
Galvanized Steel
Housing Material
Steel
Includes
Mounting Hardware
Wheel Type
Forward-Curved
Drive Type
Belt Drive
For Air Type
General/Clean
Maximum Ambient Temperature
250 Degrees F
Housing Material Finish
Galvanized
Spark Resistant Construction Type
Not Rated
Chemical Resistant
No
Mount Type
Multiposition
Wheel Material Finish
Zinc Plated
Resistance Properties
Corrosion Resistant
Market
Commercial, Industrial, Residential
Maximum Airflow
7,100 cfm
Number of Discharge Positions
4
Includes Drive Package
No
Hazardous Location Application
No
Includes Mounting Hardware
Yes
Minimum Motor Horsepower
5/16 hp
Maximum Motor Horsepower
10 hp
Minimum Ambient Temperature
-65 Degrees F
OEM Replacement
No
Housing Material Grade
G90
Minimum Airflow
6,100 cfm
Outlet Shape
Rectangular
Maximum Static Pressure
2 1/2 in wc
Corrosion Resistant
Yes
Flange Type
Non-Flanged
Maximum Inlet Air Temperature
250 Degrees F
Assembly
Unassembled
Features
Base Feet can be Mounted for Various Discharge Positions, Blower Housings Have Extruded Holes to Give Greater Holding Power for Mounting Base Sides and Motor Bracket, Capacity Range 200 to 8000 cfm, Shaft Dimensions and Finish are Carefully Controlled to Ensure Quiet, Trouble Free Operation, Shafts for Ball Bearing Models have Keywayed Ends, the Blower Wheel has an Exclusive Centre Disc which Allows Blowers to be Used Safely at Speeds Well Above Any Normal Requirement
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Maximum Fan Speed
1,700 RPM
For High-Static Pressure Applications
Yes
Includes Motor
No
Number of Inlets
2

Description

Blower, Wheel Type Forward-Curved, Drive Type Belt Drive, Includes Drive Package No, Assembly Unassembled, Wheel Diameter 15 1/2 in, Minimum Airflow 6,100 cfm, Maximum Airflow 7,100 cfm, Maximum Static Pressure 2 1/2 in wc, Maximum Inlet Air Temperature 250 Degrees F, Shaft Diameter 1 in, Bearing Type Ball, Wheel Material Steel, Housing Material Steel, Wheel Width 10 3/4 in, Number of Inlets 2, Inlet Diameter 12 1/2 in, Outlet Shape Rectangular, Outlet Height 15 7/8 in, Outlet Width 14 5/8 in
