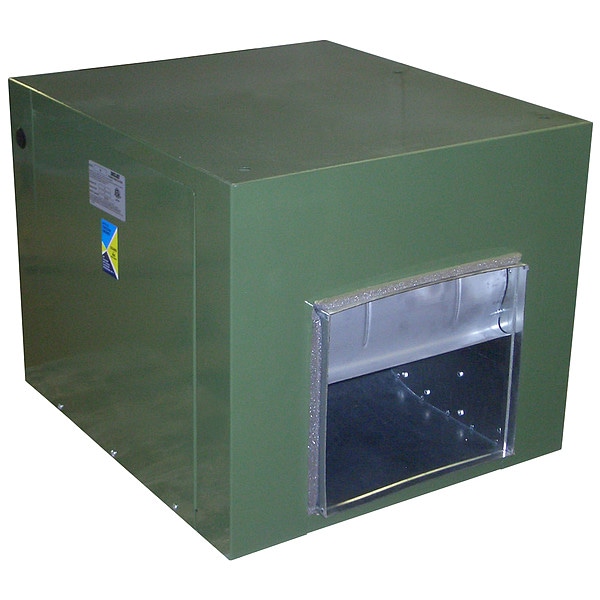

Delhi Blower, Inline Duct 9020107 - main

Blower, Inline Duct

  • Mfr # 9020107

  • Zoro # G2352603

product price: $604.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia. (In.)
10 1/4 in
Max. Inlet Temp. (Deg. F)
140 Degrees F
Rotation
CW/CCW
Wheel Material
Steel
Dimension M (In.)
16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9020107
Zoro #
G2352603
UPC #
062345338453
Country of Origin
Canada

Dimensions

Wheel Dia. (In.)
10 1/4 in
Dimension M (In.)
16 in
Dimension D (In.)
10 1/4 in
Dimension K (In.)
7/8 in
Filter Width (In.)
1 7/8 in
Discharge Width (In.)
11 3/16 in
Discharge Height (In.)
10 1/4 in
Dimension L (In.)
19 in
Dimension F (In.)
17 1/2 in
Dimension H (In.)
1 1/4 in
Dimension E (In.)
11 13/16 in
Dimension A (In.)
21 in
Filter Height (In.)
16 3/4 in
Dimension B (In.)
18 in
Height (In.)
18 in
Dimension G (In.)
11 3/4 in
Dimension C (In.)
23 in
Max. Depth (In.)
23 in
Bolt Hole Dia. (In.)
7/8 in
Dimension J (In.)
1 3/4 in
Width (In.)
21 in
Shaft Dia. (In.)
3/4 in
Overall Width
21 in
Overall Height
18 in
Inlet Duct Connection Height
16 in
Inlet Duct Connection Width
19 in
Outlet Duct Connection Width
11 1/8 in
Shaft Diameter
3/4 in
Outlet Duct Connection Height
10 1/4 in
Filter Width
1 7/8 in
Overall Depth
23 in
Wheel Diameter
10 1/4 in
Filter Height
16 3/4 in
Inlet Diameter
8 in

Details

Max. Inlet Temp. (Deg. F)
140 Degrees F
Rotation
CW/CCW
Wheel Material
Steel
Item
Blower
Housing Material
Steel
Type
Less Drive Package
Mounting Position
All With Shaft Horizontal
Number of Mounting Points
4
Motor HP Range
1/4 To 3/4
Max. Ambient Temp. (F)
140 Degrees F
Filter Factor
0.055
RPM Range
690 to 1008
Wheel Type
Forward-Curved
Filter Rack Stock No.
3F538
Bearing Type
Ball
Housing Finish
Green Baked Enamel
CFM Range
1385 to 2115 @ 0.0 in SP
Application
Cooling, Use Indoors with Clean-Air Heating, Ventilating Systems
Drive Type
Belt Drive
Features
1/2 in Internal Fiberglass Insulation Helps Isolate Noise and Overcome Condensation on Cabinet When Used in Cooling Applications, Access Panel Allows Installation and Servicing from Either Side
Mounting Orientation
Horizontal
Spark Resistant Construction Type
Not Rated
Maximum Static Pressure
2 1/2 in wc
Minimum Airflow
800 cfm
Maximum Airflow
1,800 cfm
Minimum Fan Speed
690 RPM
Minimum Motor Horsepower
1/6 hp
Housing Material Finish
Baked Enamel
Includes Drive Package
No
Housing Color
Green
Number of Inlets
2
For Air Type
Clean
Maximum Fan Speed
1,008 RPM
For Location
Indoor
Maximum Inlet Air Temperature
140 Degrees F
Maximum Motor Horsepower
3/4 hp
Maximum Ambient Temperature
140 Degrees F
Compatible Filter Part Number
3F538
Assembly
Unassembled

Description

Blower, Wheel Type Forward-Curved, Drive Type Belt Drive, Includes Drive Package No, Assembly Unassembled, Wheel Diameter 10 1/4 in, Minimum Airflow 800 cfm, Maximum Airflow 1,800 cfm, Maximum Static Pressure 2 1/2 in wc, Maximum Inlet Air Temperature 140 Degrees F, Shaft Diameter 3/4 in, Bearing Type Ball, Wheel Material Steel, Housing Material Steel, Number of Inlets 2, Inlet Diameter 8 in, Outlet Duct Connection Height 10 1/4 in, Outlet Duct Connection Width 11 1/8 in
