  9. SD25TB4 PRO THUNDERBOLT 4 SMART DOCK
No Product Image Available

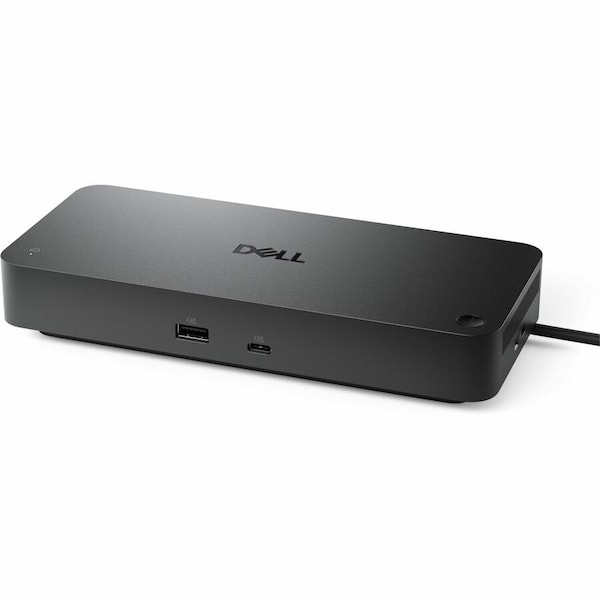

SD25TB4 PRO THUNDERBOLT 4 SMART DOCK

  • Mfr # DELL-SD25TB4

  • Zoro # G222773048

product price: $368.99
/ea
Free Shipping & Returns

Key Features

HDMI
Yes
Power Delivery
96W (non-Dell Systems), 130W (Dell Systems)
Thunderbolt
Yes
USB Type-A
Yes
DisplayPort Version
1.4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DELL-SD25TB4
Zoro #
G222773048
UPC #
-
Country of Origin
China

Dimensions

Height
8.07 in
Cable Length
2.72 ft
Depth
1.39 in
Width
3.54 in

Details

HDMI
Yes
Power Delivery
96W (non-Dell Systems), 130W (Dell Systems)
Thunderbolt
Yes
USB Type-A
Yes
DisplayPort Version
1.4
Operating System
Windows 10, Windows 11, macOS, Ubuntu 24.04, ChromeOS 137, Red Hat Enterprise Linux 9.6
Interfaces
Thunderbolt 4
Number of USB 3.2 Gen 2 Type-A Ports
4
Number of USB Type-C Ports
2
Management Features
Wake-on-LAN, MAC Address Pass-through, Dock Power Button Sync, WLAN to LAN Switch, PXE Boot, Intel AMT over Thunderbolt with select Intel vPro PCs, Dell Command Update (DCU), Kernel Direct Memory Access (DMA) Protection, Port Disablement
Ethernet Technology
2.5 Gigabit Ethernet
Number of HDMI Ports
1
Number of Thunderbolt 4 Ports
2
Features
LED Power Indicator, Power Delivery Pass-through
Supported Resolutions
6144 x 3456, 3440 x 1440, 2560 x 1440, 3840 x 2160, 5120 x 2160, 7680 x 4320
Kensington Security Slot
Yes
Screen Mode Supported
QHD @ 60Hz, 4K @ 60Hz, WQHD @ 60Hz, 5K @ 60Hz, 6K @ 60Hz, 8K @ 60Hz
Security Slot Type
Kensington Security Slot
Maximum Power Supply Wattage
180 W
Connectivity Technology
Wired
Charging Capability
Yes
Number of DisplayPorts
2
DisplayPort
Yes
Number of Displays Supported
4
Power Source Type
Power Adapter
Maximum Data Transfer Rate
1.25-GB/s
Number of USB Type-A Ports
4
USB Type-C Detail
1 x USB-C 3.2 Gen 2 (15W), 1 x USB-C Multi-function DisplayPort (7.5W)
Network (RJ-45)
Yes
USB Type-C
Yes
Compatible Devices
Notebook, Desktop PC
HDMI Version
2.1
Video Resolution Details
QHD - 60 Hz (Quad Display), 4K - 60 Hz (Triple Display), WQHD - 60 Hz (Triple Display), 4K - 60 Hz (Dual Display), 8K - 60 Hz (Single Display), 4K - 60 Hz (Quad Display), 5K - 60 Hz (Single Display), 6K - 60 Hz (Dual Display)
Item
Docking Station
USB Charging Port
6
