  11. Manual Single Hole Lavatory Faucet, Single Hole Mount, Chrome Single hole installation Hole

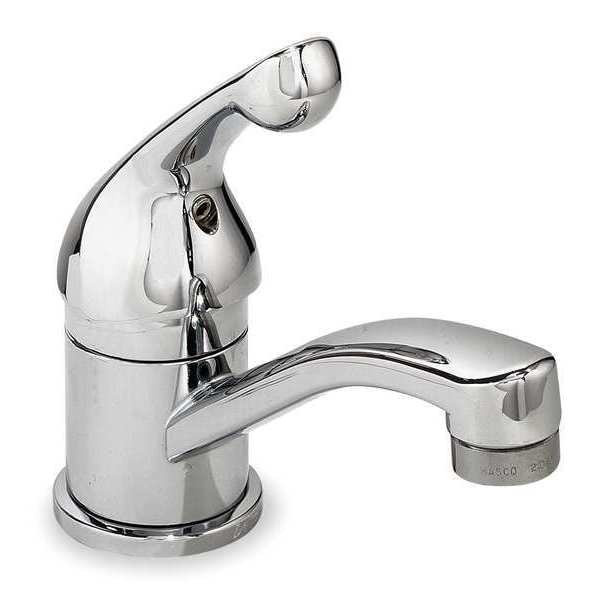

Delta Manual Single Hole Lavatory Faucet, Single Hole Mount, Chrome Single hole installation Hole 570LF-WF - main

Manual Single Hole Lavatory Faucet, Single Hole Mount, Chrome Single hole installation Hole

  • Mfr # 570LF-WF

  • Zoro # G5098186

product price: $224.50
/ea
Free Shipping & Returns

Key Features

Mounting Hole Center to Center
Single Hole
Mounting Type
Deck
Finish
Chrome
Handle Type
Joystick
Handle Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
570LF-WF
Zoro #
G5098186
UPC #
034449006545
Country of Origin
United States

Dimensions

Spout Length
4
Height
4-3/4 in
Overall Height
5.88
Spout Height
5 7/8 in
Depth (In.)
5.5
Overall Width
2
For Mounting Hole Diameter - Minimum
1 1/4 in
Spout Height - Maximum
5 7/8 in
Spout Outlet Height
3 1/2 in
For Surface Thickness - Maximum
1-9/16 in
For Mounting Hole Diameter - Maximum
2 in
Inlet Connection Size
1/2 in

Details

Mounting Hole Center to Center
Single Hole
Mounting Type
Deck
Finish
Chrome
Handle Type
Joystick
Handle Material
Metal
Number of Handles
1
Body Material
Brass
Weight
2.65 lb
Item
Single Hole Lavatory Faucet
Green Certification or Other Recognition
WaterSense Certified
Faucet Type
Bathroom Sink Faucet
Valve Type
Stainless Steel Ball
Temp. Control
Yes
Standards
ASME A112.18.1/CSA B125.1, ICC/ANSI A117.1
Connection
1/2" MNPS
Battery Charger CEC Compliant
CEC Compliant
Faucet Spout
Swing
Replacement Cartridge
1NNX6 or 1NNZ1
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
ADA Compliance
ADA Compliant
Series
Classic
Power Source
Manual
Max. Mounting Hole Center Distance
Single Hole
Temperature Control
Adjustable Temperature
Spout Reach
4 in
Valve Type - Faucets
Ball valve
Application
Commercial
Outlet Type
Aerator
For Location
Bathroom
Number of Mounting Holes
1
Flow Rate - Maximum
1.2
CEC Compliance
CEC Compliant
Vandal Resistance
Vandal-Resistant Outlet
Ligature Resistance
No
Pressure - Maximum
60 psi
Spout Shape
Arc
Operation Method
Manual
Flow Type
Aerated
Compatible Cartridge Manufacturer Part Number
1NNX6 or 1NNZ1
Water Supply Type
Hot and Cold Lines
Includes Drain
Drain Not Included
Spout Style
Swivel
Inlet Connection Type
IPS
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet

Restrictions

This item has been restricted from sale in the following states: MA
