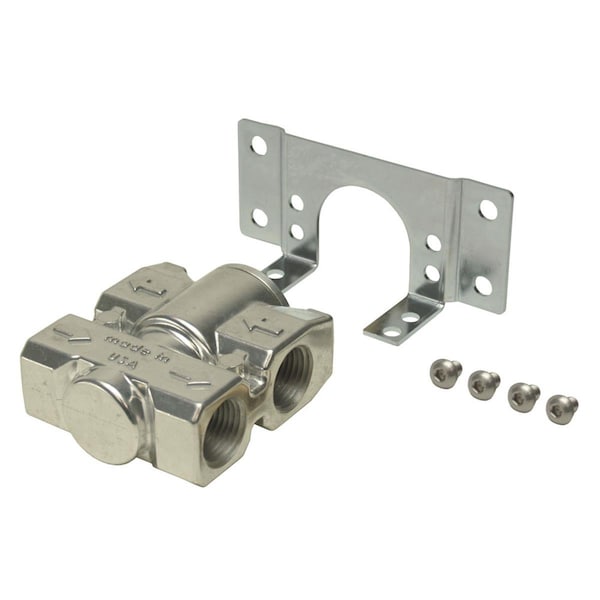

Derale 25792 Thermostat with Brackets

Derale provides electric fans, belt driven fans, fluid coolers and other promotional materials. Our products are of high quality that suits even the most demanding users.

This Billet Style Cast Aluminum Fluid Control Thermostat with 1/2" NPT ports allows the oil to bypass the cooler until it reaches 180°F at which point the internal thermostatic valve will close and force 100% of the oil through the cooler while maintaining a constant pressure system. This process allows the engine/transmission to achieve the ideal operating temperature quicker before passing the oil through the cooler. The unit can be rotated 180° to change flow direction and includes a universal mounting bracket for 4 different mounting positions.

• Bypasses cooler at 180 degree F
• Provides quicker warm-up temperatures
• Perfect for cold weather climates
• Can be rotated 180 degree to switch flow direction
• Flows up to 20 gallons per minute
• Billet style design

• Material: Aluminum
• Activating Temperature: 180° F
• Inlet Size: 1/2" NPT
