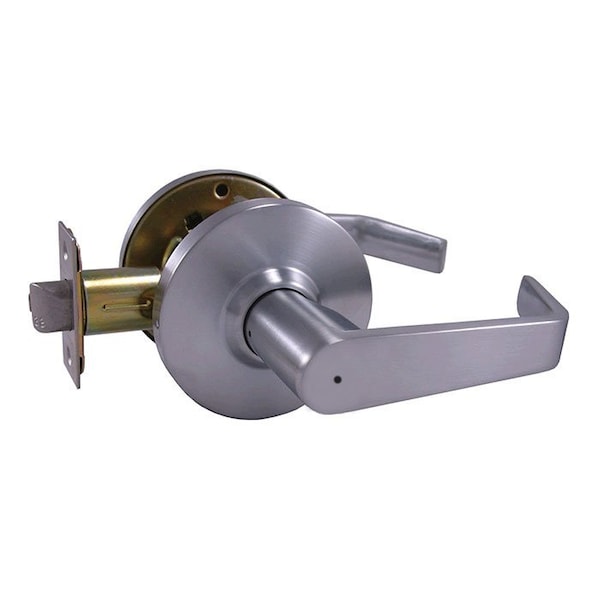

Door Lever Lockset, 1 3/8-1 3/4" Thick

Name: Door Lever Lockset, 1 3/8-1 3/4" Thick
Brand: Design Hardware
SKU: G909480900
Price: 66.95 USD
Availability: InStock

66.95

/ea

Mortise/Cylindrical

Cylindrical

Door Thickness - Maximum

1 3/4 in

Lockset Style

Rose

Standards

ANSI A156.2, UL Listed

Locking/Unlocking Access - Outside

Pin Hole

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Door Thickness - Maximum: 1 3/4 in
Door Thickness - Minimum: 1 3/8 in
Fits Chest Size: Anti-Sag Mechanism with Independent Lever Return Springs to Prevent Lever Sag, Removable Thru Bolts
Strike Plate Height: 4 7/8 in
Strike Plate Lip Length: 1 1/4 in
Strike Plate Width: 1 1/4 in

Mortise/Cylindrical: Cylindrical
Lockset Style: Rose
Standards: ANSI A156.2, UL Listed
Locking/Unlocking Access - Outside: Pin Hole
Strike Type: ASA
ANSI Grade: 2
Trim Plate Shape: Round
Lockset Function ANSI Code: F76
ANSI/BHMA Finish: Satin Chromium-Plated
Latch Bolt/Dead Bolt: Dead Latch
Backset: 2 3/4 in
Lockset Function: Privacy, Bedroom
Item: Door Lever Lockset
Includes Hardware: Hardware Included
Lockset Handle Type: Lever
ADA Compliant: Yes
Keyway Type: None
Ligature-Resistant: Not Ligature-Resistant
Hand Orientation: Non-Handed
Includes: Combination Screws for Wood or Metal Doors and Frames
Application: Medium to High Traffic
Lockset Type: Mechanical
Visual Indicator Message: No Message
Locking/Unlocking Access - Inside: Push Button
Features: Anti-Sag Mechanism with Independent Lever Return Springs to Prevent Lever Sag, Removable Thru Bolts
