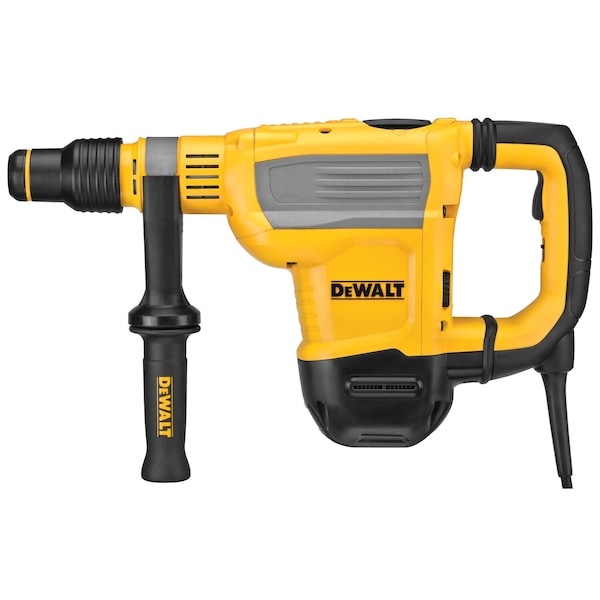

1-3/4 IN. SDS Max Combination Rotary Hammer Kit

The DEWALT D25614K 1-3/4 in. SDS Max Combination Rotary Hammer Kit is a corded rotary hammer suitable for use with concrete and masonry applications. With German-engineered mechanisms and constant speed electronics, this tool operates within specified parameters under load and provides both hammering and rotation functions. The kit includes an auxiliary handle and case for portability on the jobsite.

Key Features of the DEWALT D25614K Rotary Hammer Kit:

• Impact Energy: Provides up to 10.5 Joules (7.7 ft-lb); refer to manufacturer specifications for material compatibility.


• SDS Max Chuck: Accepts SDS-Max bits with solid bit capacity up to 1-3/4 in., core bit capacity up to 5 in., and optimal drilling range from 5/8 in. to 1-1/4 in.


• E-Clutch System: Designed to stop bit rotation during bind-up situations


• Shock Active Vibration Control: Designed to reduce handle vibration


• Variable-Speed Control: Seven-position dial allows precise adjustment of speed (190–380 RPM; blows per minute from 1,450–2,900 bpm).


• Tag Ready Feature: Compatible with DEWALT TagTM for tracking via Tool ConnectTM system (tag sold separately).


• Corded Power Source: Operates on a standard 120V AC outlet with a long 13 ft cord for flexibility around worksites.


• L-Shape Handle Design: Provides control during operation; overall tool weight is 17.3 lb.
