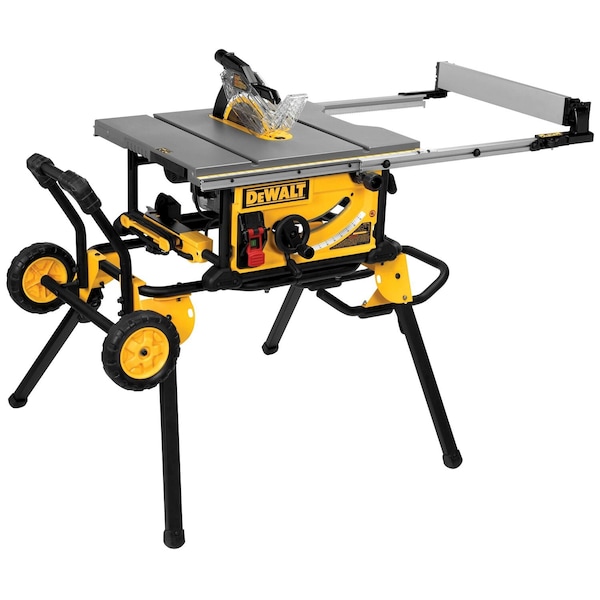

10" Jobsite Table Saw 32 - 1/2" (82.5cm) Rip Capacity, and a Rolling Stand

Mfr # DWE7491RS
Zoro # G7420174

$699.00

599.00

Additional $45.00 delivery surcharge applies per item.

Zoro's best price: not eligible for any other offers or promotions

Key Features

Blade Dia.

10 in

Max. Cut Width Right of Blade

32 1/2 in

Voltage

120 V AC

Bevel Angle Range

-2 Degrees to 45 Degrees

Max. Cutting Depth @ 0 Deg.

2 1/4 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: DWE7491RS
Zoro #: G7420174
UPC #: 885911329163
Country of Origin: Mexico

Dimensions

Blade Dia.: 10 in
Max. Cut Width Right of Blade: 32 1/2 in
Max. Cutting Depth @ 0 Deg.: 2 1/4 in
Max. Cutting Depth @ 45 Deg.: 2 1/4 in
Exhaust Port Size: 2 1/4 in
Overall Depth: 26 3/4 in
Depth of Cut @ 90 Deg.: 3-1/8"
Depth of Cut @ 45 Deg.: 2-1/2"
Overall Width: 26 1/2 in
Arbor Size: 5/8 in
Overall Height: 12 3/4 in
Table Length: 21 7/8 in
Max. Cut Width Left of Blade: 12 in
Table Width with Extension: 26 3/8 in
Table Width: 26 3/8 in
Cord Length: 6 ft
Cutting Width Left of Blade - Maximum: 12 in
Cutting Depth at 45 Degrees - Maximum: 2 1/4 in
Cutting Width Right of Blade - Maximum: 32 1/2 in
Cutting Depth at 0 Degrees - Maximum: 2 1/4 in
Blade Diameter: 10 in

Details

Item: Table Saw
Voltage: 120 V AC
Bevel Angle Range: -2 Degrees to 45 Degrees
Current: 15 A
Max. Blade Speed: 4,800 RPM
Phase: Single-Phase
Amps: 15.0
Hz: 60
Includes: 10 in 24-Tooth Carbide Blade, Miter Gauge, Push Stick, Rolling Stand
Table Surface w/Extension: 26-3/8 in x 48-5/8 in
Table Front of Blade: 7 3/4 in
Material: Cast Iron
Motor HP: 2 hp
Blade Tilt: Right
Corded/Cordless: Corded
Corded/Banded: Corded
Cutting Capacity Rip Right: 32-1/2"
Cutting Capacity Rip Left: 24"
No Load RPM: 4800
Series: DWE7491
Variable Speed: Yes
Arbor Shape: Round
Stand Type: Rolling
Power Source: Corded
Table Saw Type: Portable
Automatic Blade Safety Retraction: Yes
Horsepower: 2
Shop By: Hot Buys
Amps AC: 15
Bevel Angle - Minimum: -2 Degrees
Speed Control: Variable
Blade Speed - Maximum: 4,800 RPM
Includes Automatic Blade Safety Retraction: No Automatic Blade Safety Retraction
Bevel Angle - Maximum: 45 Degrees
Power Source - TS Only: Corded
Power Source - old: Corded

Description

The DWE7491RS 10" Jobsite Table Saw 32 - 1/2" Rip Capacity, and a Rolling Stand has a 15 Amp motor and 32-1/2" rip capacity to allow cutting of large and hardwood materials. Features tool-free guarding component adjustments and fast, accurate fence adjustments. Rolling stand designed for easy set up and breakdown with excellent stability.

• Rack & Pinion Telescoping Fence System Make fence adjustments fast, smooth and accurate

• 3-1/8" depth-of-cut at 90 and 2-1/4" at 45

• 21-7/8" x 26 - 3/8" table provides superior material support

Designed for:

• Cabinet Installers: ripping filler boards

• (1) Rolling Stand

Additional Features:

• Patented material support, can be used for narrow rip cuts

• 32-1/2" rip capacity easily cuts a variety of larger shelving and trim materials

• Onboard storage system provides easy access to the Blade Guard Assembly, fence, riving knife, miter gauge, wrenches, push stick, and cord wrap when not in use

• Rolling stand designed for easy set up and breakdown with excellent stability

• Telescoping fence rails retract to create a small, portable package

• Flip over ripping fence allows for narrow rip cuts

• 15 amp Motor quickly rips through hardwoods with ease

• 2-1/2" Dust Collection Port easily connects to a vacuum for efficient dust extraction
