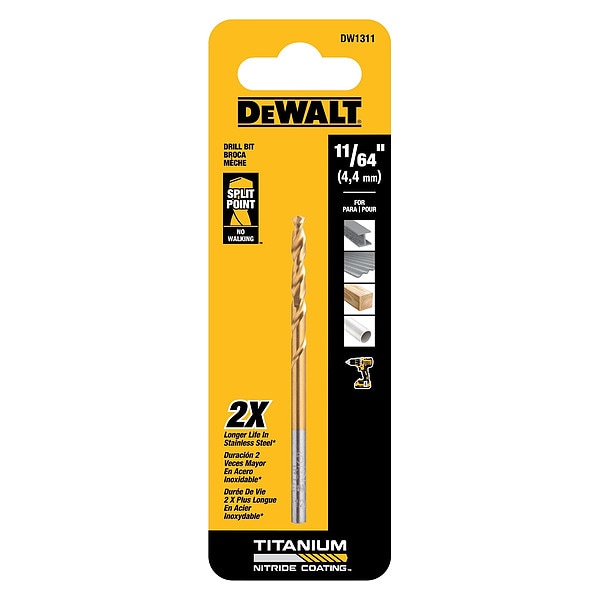

Dewalt 11/64" Titanium Speed Tip Drill Bit DW1311 - main

11/64" Titanium Speed Tip Drill Bit

  • Mfr # DW1311

  • Zoro # G8581142

product price: $4.59
/ea

Key Features

Drill Bit Size
11/64 in
Overall Length
3 5/8 in
Flute Length
2 7/16 in
Material - Machining
High Speed Steel
Finish - Machining
TiN
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DW1311
Zoro #
G8581142
UPC #
028874017498
Country of Origin
China

Dimensions

Drill Bit Size
11/64 in
Overall Length
3 5/8 in
Flute Length
2 7/16 in
Shank Dia.
11/64"

Details

Item
Jobber Length Drill Bit
Material - Machining
High Speed Steel
Finish - Machining
TiN
Drill Bit Point Angle
135 Degrees
Cutting Direction
Right Hand
Impact Rated
No
Decimal Equivalent
0.1719
List Number
135
Standards
DIN 1414, DIN ISO 1101
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Flute Type
Spiral
Primary Material Application
Plastic, Steel, Wood
Measurement System
Fractional Inch
Drill Bit Point Type
Split Point

Description

The DEWALT DW1311 11/64" Titanium Speed Tip Drill Bit is a twist drill bit designed for general purpose drilling in materials such as light gauge metal, plastics, wood, and steel. Manufactured from high speed steel. This drill bit features a split point tip to help reduce walking at the start of drilling.


Key Features of the DEWALT DW1311 11/64" Titanium Speed Tip Drill Bit:

  • Drill Bit Size: 11/64 inch (decimal equivalent: 0.1719), suitable for fractional inch measurement systems.

  • Material: Made from high speed steel.

  • Finish: Titanium nitride coated finish.

  • Point Angle & Type: Split point design with a 135-degree angle at the tip.

  • Flute Type & Length: Parabolic spiral flutes, flute length: 2-7/16 inches.

  • Shank Design: Straight round shank, overall length: 3-5/8 inches; shank diameter corresponds to drill bit size.

  • Cutting Direction: Right hand cutting direction; non-coolant through design.

  • Standards Compliance: Complies with DIN 1414 and DIN ISO 1101 standards.
