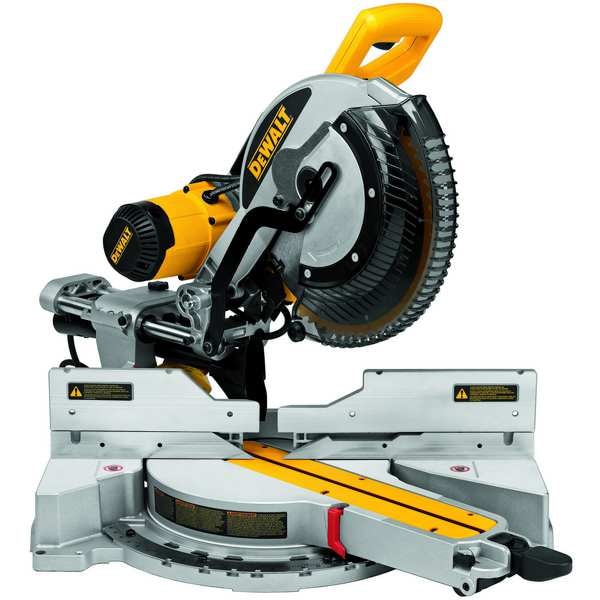

12 in. Double Bevel Sliding Compound Miter Saw
Mfr # DWS780
Zoro # G4191467
product price: $649.00
/ea
Free Shipping & Returns
Key Features
Power Source
Corded
Blade Dia.
12 in
Max. Blade Speed
3,800 RPM
Arbor Size
5/8 in, 1 in
Voltage
120 V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DWS780
Zoro #
G4191467
UPC #
885911231602
Country of Origin
Taiwan, Province of China
Dimensions
Blade Dia.
12 in
Arbor Size
5/8 in, 1 in
Length
23 1/2 in
Height
19 3/4 in
Width
30 1/2 in
Cord Length
6 ft
Max. Cut Width @ 0 Deg. Miter
13 3/4 in
Max. Cut Depth @ 0 Deg. Bevel
6 3/4 in
Max. Cut Depth @ 45 Deg. Bevel
4 1/2 in
Max. Cut Width @ 45 Deg. Miter
9 1/2 in
Overall Length
23 1/2 in
Overall Height
19 3/4 in
Overall Width
30 1/2 in
Cutting Width at 0 Degrees - Miter - Maximum
13 3/4 in
Cutting Depth at 45 Degrees - Maximum
4 1/2 in
Blade Diameter
12 in
Cutting Depth at 0 Degrees - Maximum
6 3/4 in
Cutting Width at 45 Degrees - Miter - Maximum
9 1/2 in
Description
The DEWALT DWS780 12 in. Double Bevel Sliding Compound Miter Saw is a corded miter saw designed for precision and versatility on the jobsite or in the workshop. Powered by a 15 amp motor, it features an integrated XPS crosscut positioning system for accurate cut line indication without adjustment, and supports both bevel and miter cuts with wide angle ranges.
Key Features of the DEWALT DWS780 12 in. Double Bevel Sliding Compound Miter Saw:
- Blade: 12 in., 40T carbide blade is suitable for cutting a range of materials.
- Cutting Capacity: Crosscuts up to 6-3/4 in. high and 13-3/4 in. wide at 90°, and up to 4-1/2 in. high by 9-1/2 in. wide at 45°.
- Miter Range: Miters from 60° left to 50° right; bevels from 49° left to right with nine positive stops for repeatable accuracy.
- XPS Cross Cut Positioning System: Offers cut line indication without the need for adjustment.
- Sliding Design: Dual horizontal steel rails with linear ball bearings facilitate movement of the saw during operation.
- Dust Collection: Integrated dust collection system designed to collect a portion of generated dust.
- Portability: Weighs approximately 58 lbs., making transport and storage manageable between jobsites or workshops.
- Includes clamp and dust bag as standard accessories for added convenience during use.
