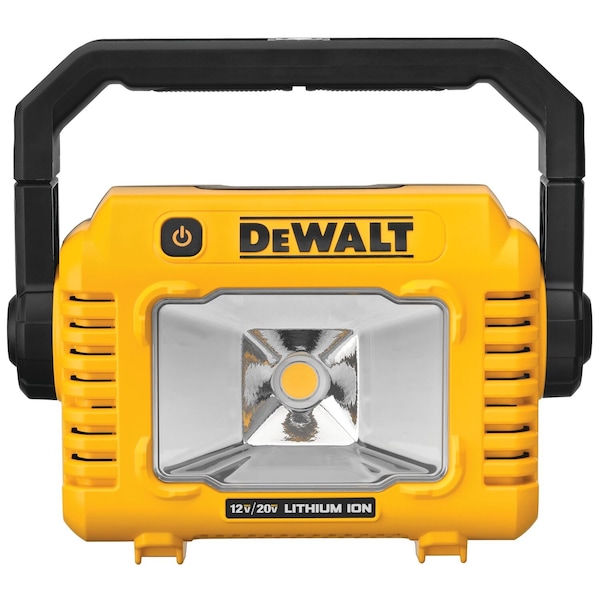

Dewalt 12V/20V MAX* Compact Task Light DCL077B - main

12V/20V MAX* Compact Task Light

  • Mfr # DCL077B

  • Zoro # G7307249

product price: $149.00
/ea
Free Shipping & Returns

Key Features

Lamp Type
LED
Watts
11 W
Lumens
2,000 lm
Voltage
12 V, 20 V
Color
Black/Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCL077B
Zoro #
G7307249
UPC #
885911637503
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Max. Extension Height
7 13/32 in
Tool Depth
7 7/16 in
Tool Length
9 5/8 in
Tool Width
4 13/16 in
Tool Height
9 5/8 in

Details

Item
Cordless Work Light
Lamp Type
LED
Watts
11 W
Lumens
2,000 lm
Voltage
12 V, 20 V
Color
Black/Yellow
Corded/Cordless
Cordless
Light Output Mode
High / Medium / Low
Task Light Type
Rotating Handle Task Light
Lighting Technology
LED
IP Rating
IP54
Run Time - Job Site Lights
Not Rated
Light Distribution - Job Site Lighting
Flood/Spot
Number of Lamp Heads
1
Power Source - Job Site Lighting
Battery/Recharchable
Type - Job Site Lighting
Tripod
Battery Chemistry
Lithium Ion
Charge Time
Battery Dependent
Safety Rated
Not Safety Rated
Base Style
Tripod
Series
20V MAX
Cordless Tool Kit Contents
Bare Tool
Number of Batteries Included
0
Power Source
Cordless
Features
3 Year Full Warranty, 360 Degrees Handle for Multiple Orientation Use, Compact and Lightweight, Natural Daylight Hue, Tripod Mountable- 5/8 in.-11 and 1/4 in.-20
Product Type
Work Light
Maximum Brightness Level
2,000 lm
Tool Weight
3 lb
Light Distribution
90 Degrees
Mount Type
Tripod
Brightness Level
500 lm, 1,000 lm, 2,000 lm
Number of Light Output Modes
3
Battery Platform
12V MAX; 20V MAX
Compatible Battery Model Number
DCB120, DCB122, DCB124, DCB127, DCB200, DCB201, DCB203, DCB204, DCB204BT, DCB205, DCB205BT, DCB206, DCB208, DCB230, DCB240, DCB606, DCB609, DCB612
Compatible Charger Model Number
DCB101, DCB102, DCB103, DCB104, DCB106, DCB107, DCB1106, DCB1112, DCB112, DCB113, DCB115, DCB118, DCB132
Run Time
12 hr
Minimum Brightness Level
500 lm
Maximum Head Rotation Angle
360 Degrees
Head Type
Rotating
Water Penetration Rating
IP54

Description

The DEWALT DCL077B 12V/20V MAX* Compact Task Light is a cordless LED work light that provides portable illumination with selectable brightness settings. This task light features a rotating handle and tripod compatibility, enabling multiple positioning options. It operates on both 12V MAX* and 20V MAX* battery platforms (batteries sold separately), making it compatible with DEWALT 12V MAX* and 20V MAX* battery platforms.


Key Features of the DEWALT DCL077B Compact Task Light:

  • Brightness Levels: Three selectable brightness settings: 500 lm, 1,000 lm, or 2,000 lm.

  • Rotating Handle: Handle rotates 360 degrees.

  • Compact & Lightweight: Weighs only 2.8 lbs., making transport and storage straightforward.

  • Cordless Operation: Compatible with DEWALT lithium-ion batteries from the specified series.

  • LED Technology: Features LED technology with adjustable beam coverage up to approximately 90 degrees.

  • IP54 Rated: Offers water and dust ingress protection suitable for demanding job sites.

  • Bare Tool: Supplied without battery or charger; integrates with existing DEWALT charging solutions as listed in compatible models.
