Dewalt

20V MAX* Brushless Universal Dust Extractor Kit

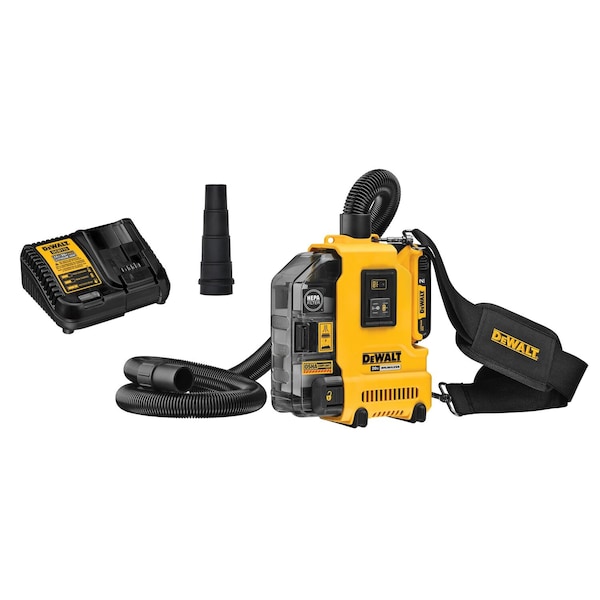

Dewalt 20V MAX* Brushless Universal Dust Extractor Kit DWH161D1
Tap to zoom
Hover or click to zoom
$318.18
  • Promotion Restriction: Not eligible for promotion
  • Features: Multiple Strap Connection Points
  • Application: Masonry
See full product details
This item ships free.
Total: $318.18

Dewalt #DWH161D1 Specifications

  • Promotion Restriction: Not eligible for promotion
  • Features: Multiple Strap Connection Points
  • Application: Masonry
  • For Use With: DEWALT(R)
  • Overall Length: 7 15/16 in
  • Item: Dust Extractor
  • Includes: (1) Battery, Belt Hook, Charger, Shoulder Strap
  • Voltage: 20 V DC
  • No. Batteries Included: 1
  • Tank Material: Plastic
  • Vacuum Pickup Type: Dry
  • Weight: 3.64 lb
  • Filter Efficiency: 99.97% at 0.3 microns
  • Vacuum Filtration Type: HEPA
  • Tank Wet Capacity: 0 gal
  • Includes Battery: Yes
  • Vacuum Power Source: Cordless
  • Tank Dry Capacity: 0 gal
  • Includes Charger: Yes
  • Tank Size: 0.06 gal
  • Vacuum Collection Type: Bagless
  • Filtration Type: HEPA
  • Pickup Type: Dry
  • Battery Capacity: 2.0 Ah
  • Charger Included: Yes
  • OSHA Table 1 Compliant: Part of OSHA Table 1 Compliant Solution
  • Air Flow: 19 cfm
  • Number of Batteries Included: 1
  • Charger Model Number: DCB115
  • Hose Diameter: 1 in
  • Overall Height: 9 1/2 in
  • Battery Series: 20V MAX
  • Collection Type: Bagless
  • Cordless Tool Kit Contents: (1) Bare Tool, (1) Battery, (1) Charger
  • Brushless Motor: Yes
  • Series: 20V MAX
  • Power Source: Cordless
  • Tool Weight: 3.64 lb
  • Country of Origin (subject to change): China

Description

Dust Extractor. The DWH161D1 20V MAX* Brushless Universal Dust Extractor is a lightweight, wearable, high mobility dust extraction solution. It's optimized for a wide range of tools and applications including SDS Plus Rotary Hammers for drilling and chipping, percussion hammer drills, drywall cutout tools, sanders, routers, and jig saws. When used in conjunction with the correct shroud and a rotary hammer, this extractor is part of an OSHA 1926.1153 Table 1 compliant solution. (The dust box includes a HEPA filter.) With its multiple connection points, this wearable dust extraction solution allows the user to position the dust extractor for the best possible ergonomic solution. Equipped with WIRELESS TOOL CONTROLTM, the user links the extractor and tool for remote extractor activation. It has 45% more capacity than DWH302DH dust box to keep up with the demands of the user.
