20V MAX* Red Rotary Laser

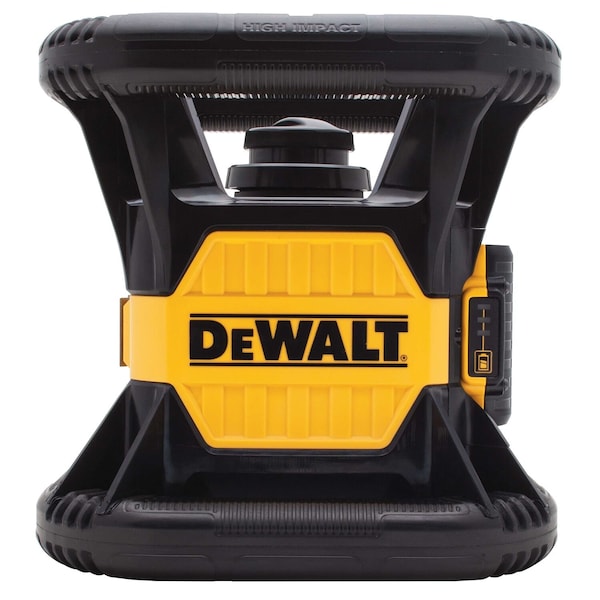

The DEWALT DW074LR 20V MAX* Red Rotary Laser is a rotary laser level designed for both indoor and outdoor leveling tasks. It features electronic self-leveling, horizontal and vertical projection, and operates on a 20V Li-Ion battery platform. The unit is built to withstand jobsite conditions with an IP54 rating and a drop resistance of up to 1 meter.

Key Features of the DEWALT DW074LR 20V MAX* Red Rotary Laser:

• Accuracy: Rated for +/-1/8 in accuracy at 100 ft.


• Range: Maximum working range: 1,500 ft with detector; 150 ft without detector.


• Self-Leveling Range: Electronic self-leveling within +/-5 degrees.


• Slope Capability: Single-axis slope mode with grade capability of +/-10 degrees.


• Indicators: Visual and audible level indicators included.


• Mounting Options: Compatible with mounting bracket or tripod (5/8"-11 thread size).


• Scan Modes & Speeds: Three scan modes (15°, 45°, 90°) and selectable rotating speeds (150–300 RPM).


• Includes Accessories: Includes charger, adapter, TSTAK® storage case, enhancement glasses, target card, ceiling bracket, batteries included.


• Toughness & Rating: Drop tested from heights of up to one meter; rated IP54 for dust/water resistance; withstands drops from up to one meter height.
