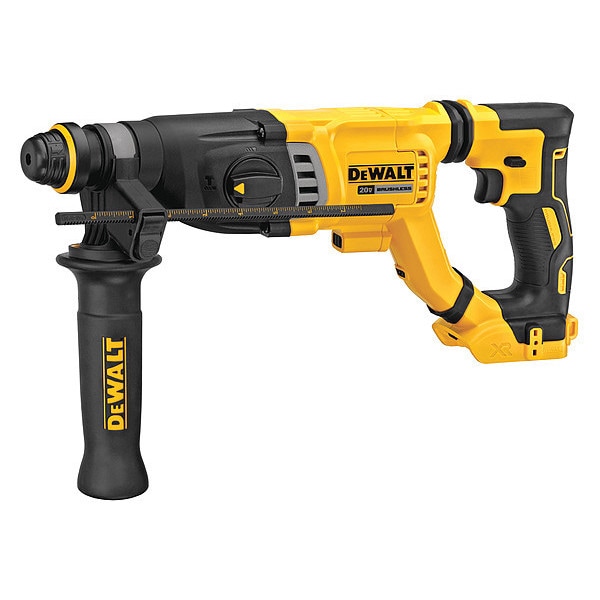

20V MAX SDS Rotary Hammer, Brushless, Cordless (Tool Only)

The DEWALT DCH263B 20V MAX* 1-1/8 in. Brushless Cordless SDS PLUS D-Handle Rotary Hammer is a cordless rotary hammer intended for use with concrete and masonry applications. Powered by a brushless motor, this tool provides up to 3.0 Joules (2.2 ft-lb) of impact energy with variable speed control; rated specifications support a range of portable applications.

Key Features of the DEWALT DCH263B Rotary Hammer:

• Brushless Motor: Brushless motor technology supports operational efficiency and runtime relative to brushed motors.


• SDS Plus Chuck: SDS Plus chuck is compatible with standard rotary hammer bits; enables bit changes per manufacturer instructions.


• Impact Energy & Blows per Minute: Rated at up to 2.2 ft-lb (3.0 Joules) of impact energy; maximum blow rate: 4,300 BPM as specified by the manufacturer.


• D-Handle Design: Facilitates grip during operation including overhead or angled work.


• Active Vibration Control: SHOCKS ACTIVE VIBRATION CONTROL® system is designed to reduce vibration transmitted through the handles during operation.


• Cordless Operation: Cordless design utilizing DEWALT’s 20V MAX lithium-ion battery platform (battery sold separately), providing mobility without cords.


• Multiple Modes: Rotating dial permits mode selection among drill, hammer drill, or chip functions as required by task specifications.


• Capacity Ratings: Rated for drilling holes up to 1-1/8 in. diameter in concrete; optimal solid bit range from 1/4 in. to 3/4 in.; core bit capacity up to 2-1/2 in.


• Additional Features: Includes side handle and depth rod; lock-on trigger; anti-kickback clutch; reversible function; UL Listed standard compliance.
