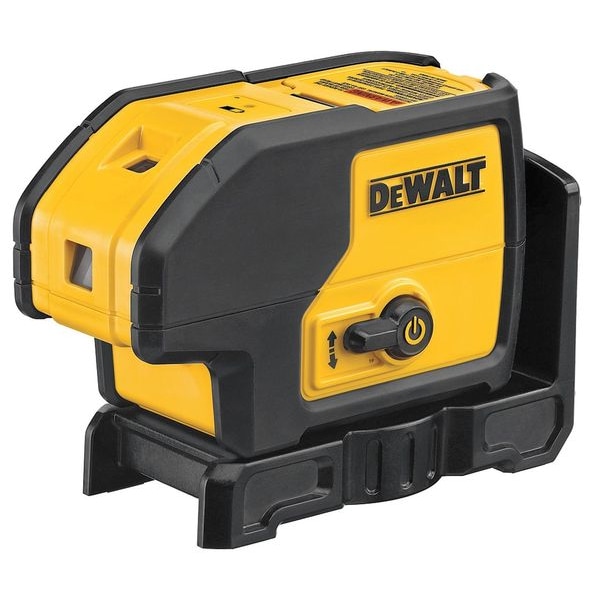

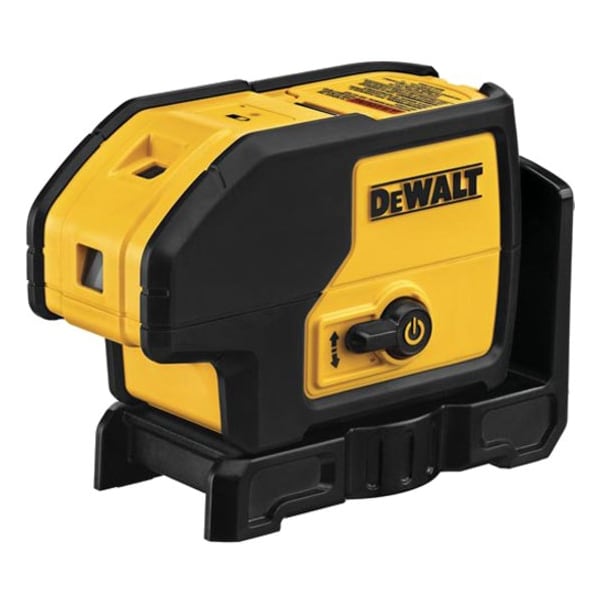

Dewalt 3 Beam Laser Pointer DW083K - main

3 Beam Laser Pointer

  • Mfr # DW083K

  • Zoro # G7418512

product price: $299.00
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
3
Number of Dots
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DW083K
Zoro #
G7418512
UPC #
885911271097
Country of Origin
China

Dimensions

Length
5 1/8 in
Thread Size
1/4"-20
Height
3 3/4 in
Width
2 1/4 in
Overall Width
8 5/8 in
Overall Height
4 5/16 in
Overall Depth
9 in
Tripod Thread Size
1/4"-20

Details

Item
Layout Laser Kit
Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
3
Number of Dots
3
Number of Lines
0
Laser Color
Red
Range w/o Detector
100 ft
Preset Angle
None
Visual/Audible Indicators
Flashing Sequence for Out of Level
Auto Leveling Range
+/-4 Degrees
Number of Level Vials
0
Laser Class
Class 2
Range w/Detector
100 ft
Plumb Down
Yes
Rotating Speed
Non-Rotating
Includes
Case
Accuracy
+/-1/4 in @ 100 ft
Auto Shutoff
No
Number of 45 Degree Vials
0
Horizontal/Vertical
Horizontal and Vertical
Beam Color
Red
Features
Focused Laser Beam Keeps Dot Size Small Over Longer Distances, Integrated Track Clearance Enables Users for Fast and Accurate Bottom and Top Track Installation, Over-Molded Housing Helps Maintain Calibration Under Job-Site Conditions, Single Lever Power Switch Locks Pendulum in the Off Position
Interior/Exterior
Interior and Exterior
Power Source
(4) AA Batteries
Plumb Up
Yes
Number of Scanning Modes
0
Total Number of Vials
0
Number of Plumb Vials
0
IP Rating
IP54
Battery Type
AA
Includes Batteries
Batteries Included
Use Location
Indoor, Outdoor
Level Indicators
Audible, Visual
Mount Type
Magnetic
Number of Planes
0
Number of 45 Vials
0
Laser Beam Color
Red
Laser Output
Less Than1.5 mW
Working Range with Detector - Maximum
100 ft
Indoor Range - Maximum
100 ft
Self-Leveling Range
+/-4 Degrees
Automatic Shutoff
No
Working Range without Detector - Maximum
100 ft
Plumb Direction
Plumb Down, Plumb Up

Description

The 3 Beam Laser Pointer includes a single lever power switch that locks the pendulum in the off position for added durability and the built-in magnetic pivoting bracket mounts easily on metal surfaces.


  • • Accuracy of 1/4 in. @ 100 ft

  • • Single lever power switch locks pendulum in the off position

  • • Built-in magnetic pivoting bracket to mount onto metal surfaces

Designed for:


  • • Steel Track Installation

  • • (1) 3-Beam Laser Pointer

Additional Features:


  • • Integrated track clearance enables users for fast and accurate bottom and top track installation

  • • Over-molded housing helps maintain calibration under job-site conditions

  • • Focused laser beam keeps dot size small over longer distances

  • • Debris and water resistance with an IP54 rating

Restrictions

Hazardous material
