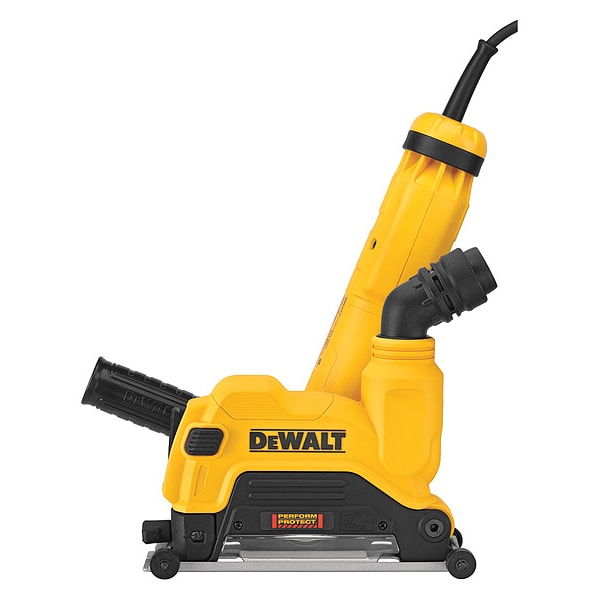

4-1/2 in. / 5 in. Cutting Grinder Dust Shroud Tool Kit

  • Mfr # DWE46123

  • Zoro # G7322918


product price: $243.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia.
4 1/2 in, 5 in
Switch Type
Slide
Voltage
120V AC
Nominal Amps
13
No Load RPM
11,000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DWE46123
Zoro #
G7322918
UPC #
885911642835
Country of Origin
China

Dimensions

Wheel Dia.
4 1/2 in, 5 in
Spindle Thread Size
5/8 in-11
Tool Length
13 in
Wheel Diameter
5 in
Overall Length
13 in

Details

Item
Angle Grinder
Switch Type
Slide
Voltage
120V AC
Nominal Amps
13
No Load RPM
11,000
Lock-on
No
Lock-off
Yes
Corded/Cordless
Corded
Includes
5 in Type 27 Guard, Cutting Dust Shroud (DWE46125), Quick Connector (DWV9000), Hex Key, Inner and Outer Flange, Kit Bag, Side Handle
Number of Pieces
8
Series
DWE
Tool Weight
5.5 lb
Features
Adjustable Shoe, Power Loss Reset, Shroud
For Use With
DWE43214, DWE43214N, DWE43214NVS, DWE43240INOX, DWE43231VS, DWE43244N, DWE43240VS, DWE46253, DWE46202, DWE43265N, DWE43840CN DWE43113, DWE43115, DWE43115N, DWE43066, DWE43066N, DWE43116, DWE43116N, DWE43114, DWE43114N, DWE43131, DWE43144, DWE43144N, DWE43140, DWE46103, DWE46153, DWE46155 DWE402G, DWE402K, DWE402, DWE402N DWE4222, DWE4222N, DWE4214 DCG414 DWE4020, DWE4120, DWE4011 DCG413
Number of Conductors
0
Shop By
Hot Buys
Case Included
Yes
For Wheel Type
Type 27
Anti-Restart Technology
Yes
Dust Management
Dust Shroud
Minimum Speed
11,000 RPM
Head Type
Standard Head
Max. Speed
11,000 RPM
Grip Style
Barrel Grip
Application
Grinding
Kit Contents
(1) Bare Tool, (1) Type 27 Guard
Lock-On Switch
No
Switch Location
Side
Power Source
Corded
Lock-Off Switch
Yes
Dust Sealed Switch
Yes
Number of Speed Settings
1
Safety Features
Anti-Kickback Clutch, Anti-Restart, Lock-Off Switch
Current
13 A

Description

Take on a wide range of grinding applications with the 4-1/2 in. / 5 in. Cutting Grinder and Dust Shroud Kit. This grinder is engineered with a 13 Amp motor for 17,000 UWO and the Anti-Rotation E-CLUTCH® system that detects the motion of the tool and shuts it down in bind-up situations. Featuring an outer blade guide on the included DWE46125 Dust Shroud , this tool delivers precise results.


  • • DWV9000 Quick Connector provides a secure connection between the shroud and vacuum

  • • Adjustable shoe on the shroud provides easy depth-of-cut adjustment

  • • Shroud features a plunging system to help improve dust collection when starting and finishing the cut

Designed for:


  • • Concrete Cutting

  • • (1) DWE43131 Grinder

Additional Features:


  • • Outer blade guide on the shroud indicates blade direction for a precise cut

  • • 13 Amp grinder provides 17000 UWO

  • • Anti-Rotation E-CLUTCH® system on the grinder detects motion of the tool, and shuts it down in bind-up situations, helping minimize sudden torque reactions compared to standard clutches

  • • Spindle lock button on grinder helps provide quick accessory changes

  • • Power Loss Reset® on the grinder prevents accidental restarts following a power disruption when the tool is left in the "on" position

  • • Dust Ejection SystemTM on the grinder helps provide durability by ejecting damaging dust and debris particles that enter through the air intake vents
