5 Beam Laser Pointer

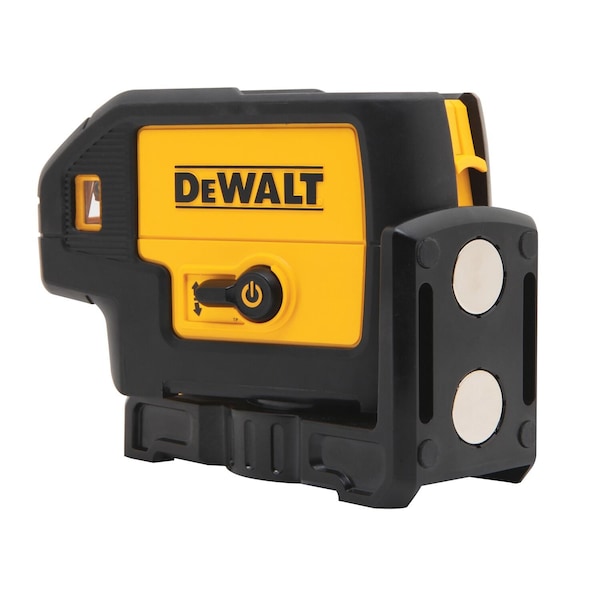

The DEWALT DW085K 5 Beam Laser Pointer is a self-leveling layout laser kit intended for point transfer and alignment tasks. It projects five red laser beams to create horizontal and vertical reference points for interior or exterior use. The unit features an overmolded housing that may assist in maintaining calibration during typical job site use, and includes a built-in magnetic pivoting bracket that attaches to metal surfaces; supports hands-free operation.

Key Features of the DEWALT DW085K 5 Beam Laser Pointer:

• Accuracy: Rated at ±1/4 in. at 100 ft.,


• Self-Leveling Range: electronic self-leveling within ±4 degrees.


• Micro Adjust Knob: enables fine-tuning of beam alignment.


• Pendulum Lock: locks the pendulum in the off position during transport or storage.


• Magnetic Mount: built-in magnetic pivoting bracket attaches to metal surfaces; supports hands-free operation.


• Integrated Track Clearance: intended to allow bottom and top track installation by minimizing obstruction from the tool body.


• Batteries Included: operates on four AA batteries (included) with visual/audible indicators such as flashing sequence when out of level condition is detected.


• Range: maximum indoor range of 100 ft.; extends up to 165 ft. when used with a detector (not included).
