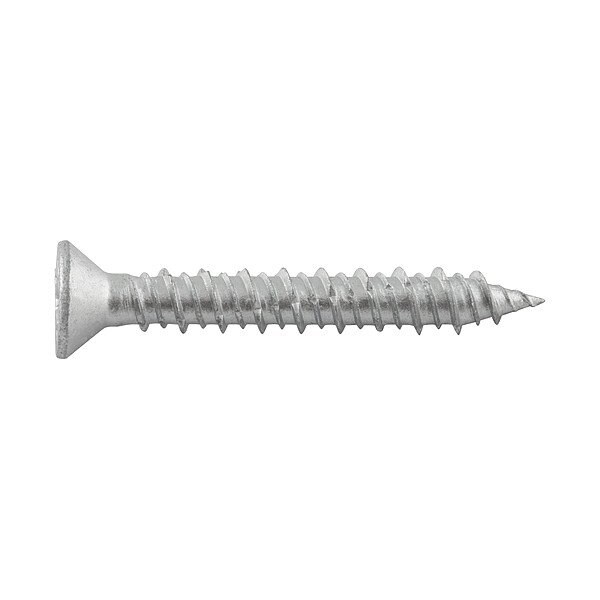

Aggre-Gator, PK50
- Mfr # DFM3EMM340S
- Zoro # G022638905
product price:Â
$
80.99
/pk of 50, $1.62/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Maximum Ultimate Tension Strength
1,380 lb
Body Length
3 1/4 in
Head Height
0.188 in
Screw Anchor Type
Screw Anchor
Drive Type
Torx
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DFM3EMM340S
- Zoro #
- G022638905
- UPC #
- 0075352346649
- Country of Origin
- Taiwan, Province of China
- Item
- Aggre-Gator Screw Anchor
- Maximum Ultimate Tension Strength
- 1,380 lb
- Screw Anchor Type
- Screw Anchor
- Drive Type
- Torx
- Maximum Ultimate Shear Strength
- 2,060 lb
- Material Quality Standards
- ASTM E488
- Ultimate Tension Strength (4,000 psi Concrete)
- 1,380 lb
- Features
- Anchor Design and Thread Profile Provides Quick Cutting during Installation, GB Coating Creates Greater Galvanic Compatibility in Dissimilar Metal Applications Involving Aluminum, Good Strength, High In-Place Value over Life of Structure, Performance and Ductility
- System of Measurement
- Inch
- Head Type
- Flat
- Minimum Ultimate Shear Strength
- 495 lb
- Series
- Aggre-Gator
- Industry Standards
- FL29068.2, Miami-Dade, NOA 21-0113.01
- Compatible Material
- Concrete, Masonry
- Tip Type
- Self-Tapping
- Material Grade/Class
- 18-8
- Material
- Stainless Steel
- Edge Distance
- 1 1/4 in
- Ultimate Shear Strength (4,000 psi Concrete)
- 2,060 lb
- Seismic Approved
- Yes
- Removable
- Removable
- Finish
- Zinc-Plated
- Minimum Ultimate Tension Strength
- 450 lb
- Traction Material
- Stainless Steel
Dimensions
- Body Length
- 3 1/4 in
- Head Height
- 0.188 in
- Head Width
- 0.313 in
- Minimum Installation Depth
- 1/4 in
- Maximum Material Thickness
- 1 1/2 in
- Drill Bit Size
- 3/16 in
- Overall Length
- 3 1/4 in
- Anchor Diameter
- 1/4 in
- Thread Length
- 1 7/8 in
Description
Aggre-Gator Screw Anchor, Anchor Diameter 1/4 in, Overall Length 3 1/4 in, Thread Length 1 7/8 in, Head Type Flat, Head Width 0.313 in, Head Height 0.188 in, Drive Type Torx, Material Stainless Steel, Finish Zinc-Plated, Material Grade/Class 18-8, Removable Removable, Drill Bit Size 3/16 in, Screw Anchor Type Screw Anchor, System of Measurement Inch, Includes Not Applicable, Maximum Material Thickness 1 1/2 in, Maximum Ultimate Shear Strength 2,060 lb, Maximum Ultimate Tension Strength 1,380 lb
