Air Compressor, 1.60 HP, Hot Dog, 120VAC

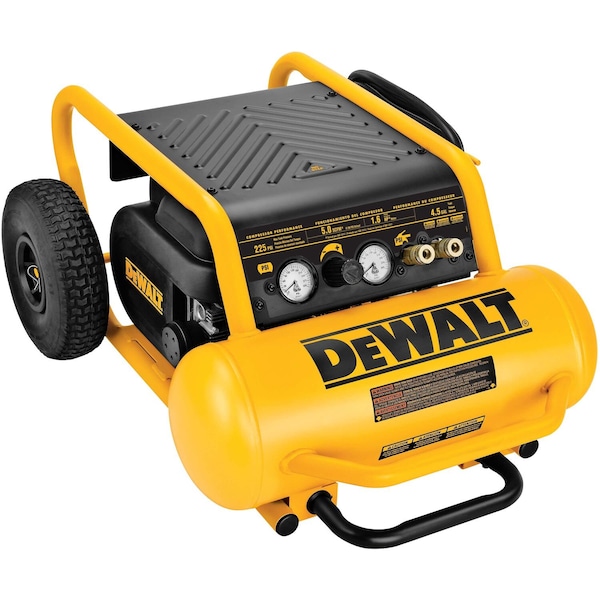

The DEWALT D55146 Air Compressor is a portable, electric-powered unit intended for use in delivering compressed air in a range of work environments. With a 1.6 HP universal motor and an oil-free piston pump, this compressor provides up to 225 PSI maximum tank storage pressure and supports continuous duty cycles. Its hot dog-style steel tank holds 4.5 gallons of air, providing capacity appropriate for tasks requiring steady airflow, as specified by the manufacturer.

Key Features of the DEWALT D55146 Air Compressor:

• Maximum Pressure: Rated for up to 225 PSI max tank storage pressure with a working maximum operating pressure of 200 PSI.


• Air Delivery: Rated to provide 5 CFM at 90 PSI and 3 CFM at maximum pressure (200 PSI). Compatible with pneumatic tools operating within these parameters.


• Pump Type & Maintenance: Oil-free piston pump design rated as maintenance-free by the manufacturer; estimated average pump life is approximately 1,000 hours per supplier specifications.


• Portability: Equipped with large non-flat pneumatic tires for transport around job sites; weighs 83 lb.


• User Interface: Features large gauges and regulator positioned behind a metal console panel.


• Outlet Connection: Features a single female NPT outlet sized at 1/4 inch for compatibility with standard air hoses and fittings.


• Cylinder Material & Motor Speed: Steel cylinder construction with universal motor rated up to 1,750 RPM during operation.
