COMPACT 20V LASERS Crossline
Mfr # DCLE34021D1
Zoro # G810040255
Key Features
Specifications
Product Information
- MFR #
- DCLE34021D1
- Zoro #
- G810040255
- UPC #
- 885911833103
- Country of Origin
- Viet Nam
Details
- Item
- Laser
- Laser Projection
- Horizontal, Vertical
- Leveling Type
- Electronic Self-Leveling
- Number of Beams
- 2
- Number of Lines
- 0
- Includes
- 20V Max 2 Ah Battery, Bracket/Tripod Mount, Case, Charger, Target
- IP Rating
- IP54
- Laser Class
- Class 2
- Accuracy
- +/-1/8 in @ 30 ft
- Battery Type
- 20V Max
- Features
- Last Mode Memory
- Laser Output
- 1.50 mW
- Standards
- CSA STD C22.2 No. 61010-1, UL STDS 61010-1 and 2595
- Includes Batteries
- Batteries Included
- Laser Beam Color
- Green
- Operating Temperature - Maximum
- 104 Degrees F
- Number of Planes
- 0
- Level Indicators
- Visual
- Mount Type
- Mounting Bracket, Tripod
- Operating Temperature - Minimum
- 39.2 Degrees F
- Working Range with Detector - Maximum
- 330 ft
- Power Source
- Battery
Description

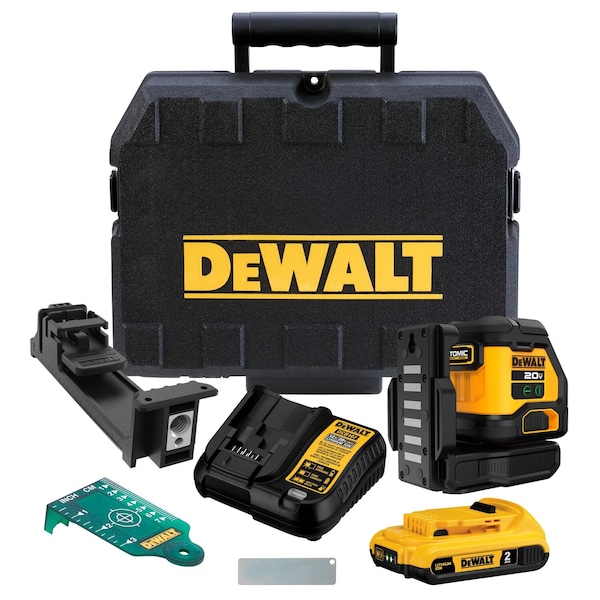

Tackle a variety of applications with the ATOMICTM 20V MAX* Green Cross Line Laser Kit (DCLE34021D1). This 20V MAX* Green Cross Line Laser provides up to 16 hours of runtime per charge** and ±1/8 in. at 30 ft. accuracy. Featuring a magnetic mount and a 58% more compact design†, this laser offers performance and portability for a variety of jobsites. Take on large areas with a 180 ft. (55m) visible range and up to 330 ft. (100m) maximum range on average when used with detector, DW0892G (sold separately). For user convenience, this kit includes a DEWALT® 20V MAX* 2Ah battery, a charger, tripod mount/drop ceiling bracket, and a laser target card all packed in a durable storage case.
- • DEWALT® 20V MAX* Battery Compatibility (up to 5.0 Ah non-POWERSTACK)
- • Green Beam Diode - Up to 180 ft. visible range, 330 ft. maximum range (when used with compatible detector sold separately)**
- • Professional Accuracy - ±1/8 in. @ 30 ft.
Designed for:
- • (1) DCLE34021 DEWALT® Cross Line Laser
- • *With respect to 20V MAX*- Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18
Additional Features:
- • Dual Size Tripod Compatible - With included tripod/wall mount bracket (1/4"-20 and 5/8"-11) (Tripod Sold Separately)
- • 16 hour runtime (with included DEWALT 20V MAX* 2.0 Ah battery)***
- • Integrated Rear Magnets - On pivoting L bracket
- • Rated to IP54 (tool only)
