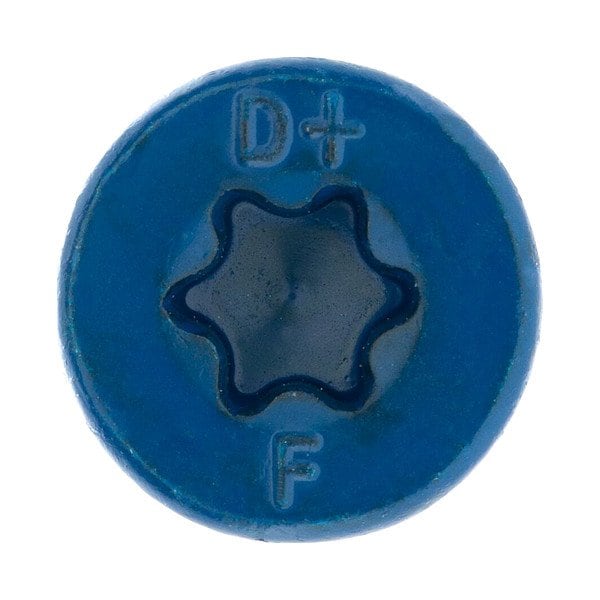

Concrete Anchor Screw, 9/64 in Dia., Flat, 4 in L, Steel Zinc Plated, 100 PK
Mfr # DFM12752S
Zoro # G015574296
product price:Â
$
18.69
/pk 100, $0.19/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Compatible Material
Block, Brick, Concrete, Masonry, Wood
Anchor Diameter
9/64 in
Overall Length
4 in
Material
Steel
Finish
Zinc-Plated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DFM12752S
- Zoro #
- G015574296
- UPC #
- 0075352339061
- Country of Origin
- Taiwan, Province of China
- Item
- Concrete Anchor Screw
- Compatible Material
- Block, Brick, Concrete, Masonry, Wood
- Material
- Steel
- Finish
- Zinc-Plated
- Head Type
- Flat
- Drive Type
- Torx
- Material Quality Standards
- ASTM B117
- Ultimate Shear Strength (4,000 psi Concrete)
- 635 lb
- Ultimate Tension Strength (4,000 psi Concrete)
- 1,570 lb
- ICC Approved for Un-Cracked Concrete
- Yes
- Edge Distance
- 1 3/4 in
- ICC Approved for Cracked Concrete
- No
- Seismic Approved
- No
- Removable
- Removable
- Series
- Ultracon(R)+
- Tip Type
- Pointed
- Industry Standards
- 2012 IBC/IRC, 2015 IBC/IRC, 2018 IBC/IRC, 2021 IBC/IRC, ESR-3042, ESR-3068, ESR-3196, ESR-3213, FL29080, ICC-ES AC106, ICC-ES AC193, ICC-ES AC233, ICC-ES AC257, LABC, LARC Supplement (within ICC-ES Evaluation Reports), Miami-Dade County Notice of Acceptance (NOA) No. 21-0113.01, ACI 355.2/ASTM E488
- System of Measurement
- Inch
- Features
- Does Not Exert Expansion Forces, Corrosion-Resistance with Stalgard Coating, High-Low Thread Design for Stability and Grip, No Hole Spotting Required
- Screw Anchor Type
- Concrete Anchor Screw
- Thread Direction
- Right Hand
- Material Grade/Class
- Case Hardened
- Maximum Ultimate Shear Strength
- 1,265 lb
- Maximum Ultimate Tension Strength
- 1,690 lb
Description
Concrete Anchor Screw, Anchor Diameter 9/64 in, Screw Size 3/16 in, Overall Length 4 in, Thread Size Not Applicable, Thread Length 1 7/8 in, Head Type Flat, Head Diameter 0.375 in, Head Height 0.141 in, Drive Type Torx, Material Steel, Finish Zinc-Plated, Material Grade/Class Case Hardened, Removable Removable, Compatible Material Block, Brick, Concrete, Masonry, Wood, Drill Bit Size 5/32 in, Screw Anchor Type Concrete Anchor Screw, System of Measurement Inch, Maximum Material Thickness 2 1/4 in
