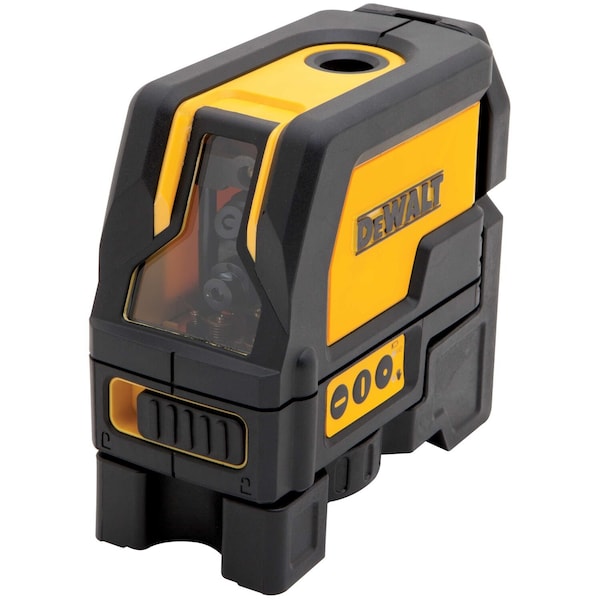

CROSS LINE AND PLUMB SPOTS LASER

  • Mfr # DW0822

  • Zoro # G7636422


product price: $389.00
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
2
Number of Dots
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DW0822
Zoro #
G7636422
UPC #
885911332743
Country of Origin
China

Dimensions

Length
9 in
Width
8 in
Height
4 in
Thread Size
1/4"-20, 5/8"-11
Overall Height
4 5/16 in
Overall Width
8 5/8 in
Tripod Thread Size
1/4"-20
Overall Depth
9 1/8 in

Details

Item
Cross Line and Plumb Laser
Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
2
Number of Dots
2
Number of Lines
2
Laser Color
Red
Range w/o Detector
50 ft
Number of Scanning Modes
0
Number of Level Vials
0
Beam Color
Red
Number of 45 Degree Vials
0
IP Rating
IP54
Horizontal/Vertical
Horizontal and Vertical
Rotating Speed
Non-Rotating
Range w/Detector
165 ft
Total Number of Vials
0
Includes
(3) AA Batteries
Visual/Audible Indicators
Flashing Sequence for Out of Level
Preset Angle
None
Accuracy
+/-1/8 in @ 30 ft
Plumb Down
Yes
Power Source
(3) AA Batteries
Laser Class
Class 2
Auto Leveling Range
100 Degrees
Plumb Up
Yes
Auto Shutoff
No
Features
Full-Time Pulse Mode Allows use with Detector, Locking Pendulum to Helps Prevent Damage to Internal Components, Maintains Full Brightness for Visibility
Interior/Exterior
Interior and Exterior
Number of Plumb Vials
0
Battery Type
Alkaline
Working Range without Detector - Maximum
50 ft
Includes Batteries
Batteries Included
Working Range with Detector - Maximum
165 ft
Mount Type
Magnetic
Number of Planes
0
Self-Leveling Range
100 Degrees
Level Indicators
Audible, Visual
Use Location
Indoor, Outdoor
Plumb Direction
Plumb Down, Plumb Up
Laser Beam Color
Red
Automatic Shutoff
No
Number of 45 Vials
0

Description

When you need to ensure accuracy for your next project, the DEWALT DW0822 Laser Layout Tool is a valuable tool. The laser beam is easy to see, and can be set to red or green. With a +/- 1/8 in. accuracy at 30 ft., this cross line and plumb laser ensures that you get precise measurements every time. This laser level has an interior and exterior range of 166 ft., allowing you to complete projects with ease. Its compact size makes it easy to carry around, while its battery power source means there are no cords to worry about. You can switch between red and green beams with the push of a button, depending on what color works best for your specific application. The DEWALT DW0822 Laser Layout Tool will give you all the tools necessary for accurate measurements in tight spaces and corners.

Restrictions

Hazardous material
