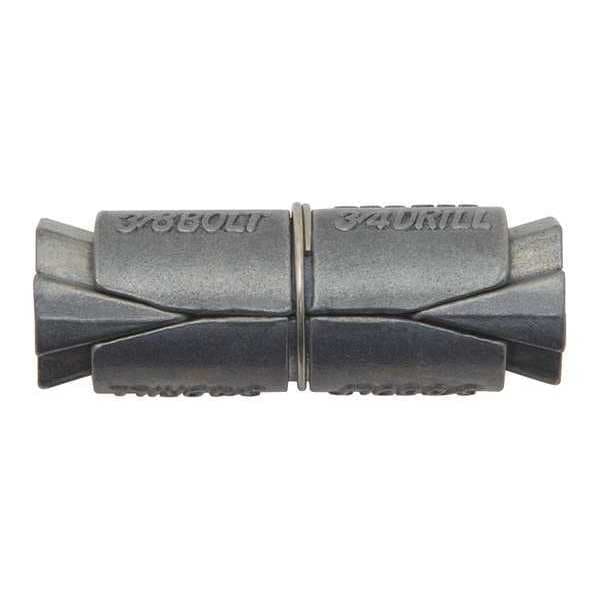

Double Double Lag Shield, 1/4" Dia, 1-3/8" L, Alloy Steel Plain, 50 PK
Mfr # 09510-PWR
Zoro # G8722822
CAD Available
product price: $25.55
/pk 50, $0.51/eaKey Features
CAD Drawing
Compatible Material
Concrete; Hollow Block; Brick
Overall Length
1-3/8"
Sub-Brand
Double
Material
Alloy Steel
Finish
Plain
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
09510-PWR
Zoro #
G8722822
UPC #
075352095103
Country of Origin
Viet Nam
Dimensions
Anchor Diameter
1/4"
Overall Length
1-3/8"
Drill Bit Size
1/2"
Minimum Hole Depth
1-1/4"
Thread Size
1/4"-20
Screw Size
1/4 in
Thread Depth
0.5 in
Minimum Installation Depth
1 1/4 in
Bolt or Rod Size
1/4 in
Description
Expansion Anchor, Anchor Diameter 1/4 in, Overall Length 1 3/8 in, Screw Size 1/4 in, Thread Size 1/4 In.-20, Thread Depth 0.5 in, Thread Type Coarse, Material Zamac Alloy, Finish Plain, Drill Bit Size 1/2 in, Minimum Installation Depth 1 1/4 in, System of Measurement Inch, Expansion Anchor Type Double Expansion Anchor, Material Grade/Class Not Graded, Compatible Material Block, Brick, Concrete, Stone, Installation Method Machine Screw, Minimum Hole Depth 1 1/4 in
