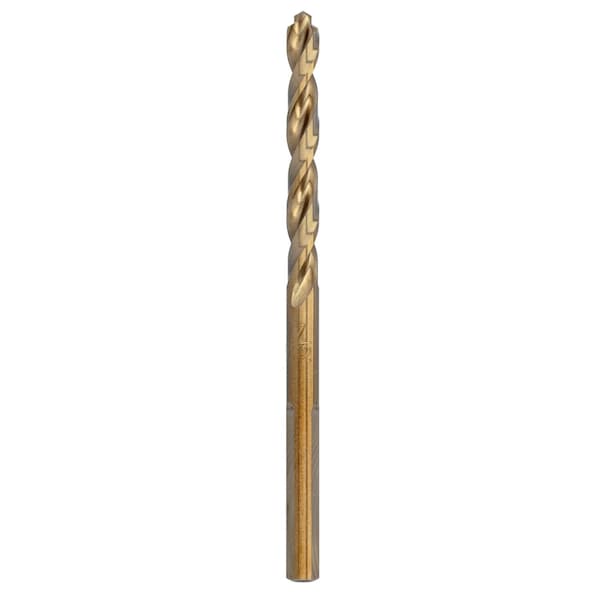

Drill Bits, 96 mm L, Stainless Steel

Mfr # DWAMDCE14
Zoro # G422414406

Zoro's best price: not eligible for any other offers or promotions

Key Features

Drill Bit Point Angle

135 Degrees

Number of Flutes

Drill Bit Point Type

Pilot Point

Helix Angle - Minimum

31 Degrees

Depth:Dia. Ratio

9xD

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: DWAMDCE14
Zoro #: G422414406
UPC #: 885911970365
Country of Origin: Germany

Dimensions

Depth:Dia. Ratio: 9xD
Drill Length Class: Jobber-Length
Flute Length: 50.5 mm
Drill Bit Size: 7/32 in
Shank Dia.: 7/32 in
Wire Rope Length: 96 mm
Overall Length: 96 mm
Length: 96 mm

Details

Drill Bit Point Angle: 135 Degrees
Number of Flutes: 2
Drill Bit Point Type: Pilot Point
Helix Angle - Minimum: 31 Degrees
Flute Type: Spiral
Cutting Direction: Right Hand
Shank Type - Machining: Straight with Three Flats
Spiral Direction: Right Hand
Finish - Machining: Black Oxide
Material - Machining: Cobalt Alloy Steel
Coolant Fed: Non-Coolant Through
Primary Material Application ISO Code: M
Material Grade - Machining: M35
Secondary Material Application: Hardened Steel
Primary Material Application: Stainless Steel
Secondary Material Application ISO Code: H
Standards: DIN 1414, DIN ISO 1101, DIN ISO 2768-mH
Item: Drill Bits
Measurement System: Fractional Inch

Description

Drill Bits, Drill Bit Size 7/32 in, Drill Bit Point Angle 135 Degrees , Cobalt Alloy Steel, Black Oxide, Fractional Inch, Drill Bit Point Type Pilot Point, Non-Coolant Through
