Dust Extractor for DCH263 1-1/8 in. SDS Plus D-Handle Rotary Hammer
Mfr # DWH205DH
Zoro # G9660763
Key Features
Specifications
Product Information
- MFR #
- DWH205DH
- Zoro #
- G9660763
- UPC #
- 885911624770
- Country of Origin
- China
Dimensions
- Overall Length
- 17 3/4 in
- Overall Width
- 3 5/8 in
- Maximum Application Diameter
- 1 in
- Wire Rope Length
- 17 3/4 in
- Length
- 17 3/4 in
Details
- Item
- On-Tool Dust Extractor
- Application
- Drilling
- Includes
- (3) Dust Nozzle Heads, Dust Box Assembly, Shoulder, Small Diameter Bits, Stop Bits
- For Use With
- DCH263
- Number of Pieces
- 7
- Filtration Type
- HEPA
- Kit Contents
- (3) Dust Nozzle Heads for 1 in Diameter Bits
- Product Type
- On-Tool Dust Extractor
- Compatible Tool Type
- Rotary Hammer
- Battery Series
- 20V
- Compatible with Manufacturer Part Number
- DCH263
- Compatible Chuck Style
- SDS-Plus
- Extractor Mounting Location
- On-Tool
- Standards
- OSHA
- Wet or Dry Use
- Dry
- OSHA Table 1 Compliant
- OSHA Table 1 Compliant
- Dust Compartment Type
- Self-Contained
- Solid Bit Optimal Drilling Range in Concrete
- 1/2 in to 1 1/2 in
Description

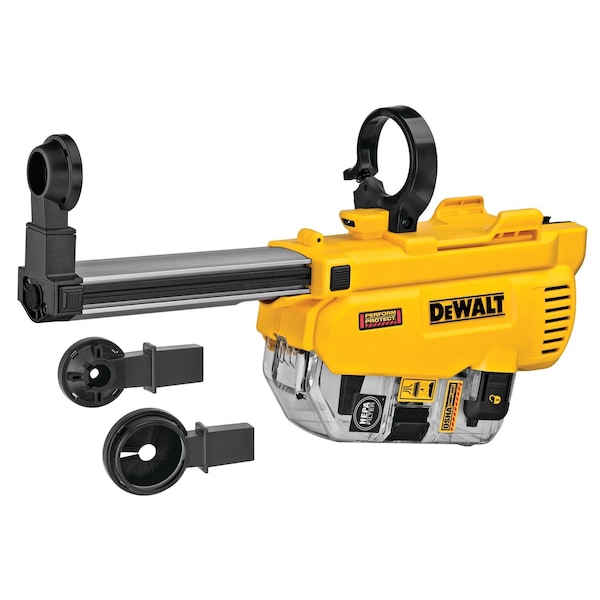

The DWH205DH is an OSHA Table 1 Compliant dust extractor for the DCH263 20V MAX* XR® Brushless 1-1/8" D-Handle SDS Plus Rotary Hammer. This dust extraction system features a powerful built in motor for increased suction and high-performance drilling. The 2-second power-off delay ensures that dust extraction continues after drill is switched off. The DWH205DH features three nozzle heads for maximum dust collection during the application. The included nozzles are tuned for up to 1" diameter bits, all stop bits up to 1.5" shoulder and small diameter bits up to 0.5". This dust extractor allows for bit lengths up to 10" in overall length for drilling applications. This allows users to install a wide range of anchors including pinch nails, rod hanging systems like dropins, large diameter sleeve, stud/wedge, and screw anchors. This unit includes an OSHA 1926.1153-compliant Dust Box Assembly. Equipped with a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater.
- • Coil nails with bright, galvanished (G12), hot-dipped or stainless steel surfaces finishes. Either spiral, ring, plain or barbed shank
- • Three replaceable optimized dust nozzle heads are tuned for up to 1" diameter bits, all stop bits up to 1.5 in. shoulder and small diameter bits up to 0.5 in
- • Bit lengths up to 10 in. in overall length
Designed for:
- • Drilling holes for rebar dowels
- • (1) DWH302DH, Table 1 OSHA 1926.1153-Compliant Dust Box Assembly
Additional Features:
- • Quick release for easy tool assembly and disassembly
- • Compact inline design; Rotary hammer and dust collection only 3.72 in. wide installed
- • Durable clear high capacity dust box with replaceable HEPA cannister that removes 99.97% of airborne particle 0.3 microns or greater
- • Easily adjusted depth stop for accurate anchor hole depths
- • Dust extractor mounted led for illuminating low light work environments
