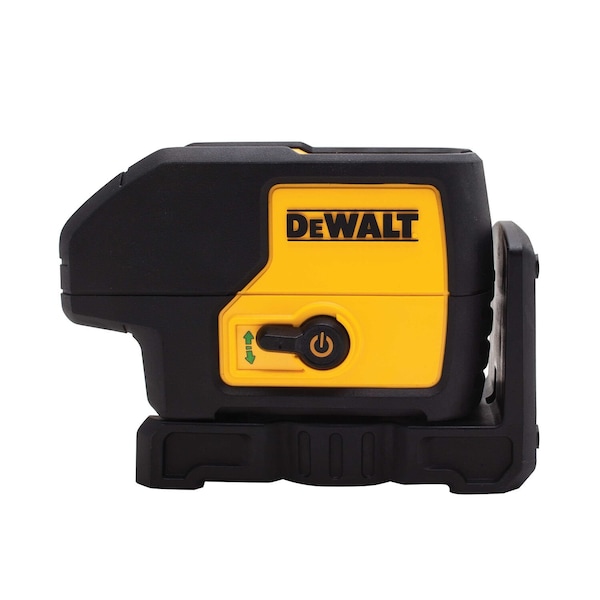

Dewalt Green Beam 3 Spot Lasers DW083CG - main

Green Beam 3 Spot Lasers

  • Mfr # DW083CG

  • Zoro # G2867930

product price: $319.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
3
Number of Dots
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DW083CG
Zoro #
G2867930
UPC #
-
Country of Origin
China

Dimensions

Length
9 5/16 in
Width
8 39/64 in
Height
4 5/16 in
Thread Size
1/4"-20, 5/8"-11
Overall Width
8 5/8 in
Overall Depth
9 5/8 in
Tripod Thread Size
1/4"-20, 5/8"-11
Overall Height
4 5/16 in

Details

Item
Dot Laser
Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
3
Number of Dots
3
Number of Lines
0
Laser Color
Green
Range w/o Detector
100 ft
Auto Leveling Range
+/-5 Degrees
Features
1 m Drop Rating, Locking Pendulum
Total Number of Vials
0
Rotating Speed
Non-Rotating
Number of Scanning Modes
0
Visual/Audible Indicators
Yes
Power Source
(2) AA
Auto Shutoff
No
Number of Plumb Vials
0
Plumb Down
Yes
Number of Level Vials
0
Accuracy
+/-1/8 in
Includes
Blow Mold Case, Bracket
Plumb Up
Yes
IP Rating
IP54
Slope
+/- 10 Degrees
Grade Capability
Single
Laser Class
Class 2
Range w/Detector
100 ft.
Number of 45 Degree Vials
0
Battery Type
AA
Includes Batteries
Batteries Included
Working Range without Detector - Maximum
100 ft
Self-Leveling Range
+/-5 Degrees
Level Indicators
Audible, Visual
Number of 45 Vials
0
Laser Beam Color
Green
Mount Type
Magnetic
Plumb Direction
Plumb Down, Plumb Up
Use Location
Indoor, Outdoor
Number of Planes
0
Automatic Shutoff
No

Description

The DEWALT DW083CG Green Beam 3 Spot Laser is a dot laser intended for alignment and layout tasks in indoor and outdoor settings. It features a green beam that projects three spots with electronic self-leveling capability, making it suitable for use in environments that require accuracy and durability. The integrated magnetic bracket enables mounting on metal surfaces, while the locking pendulum helps protect the device during transport or storage.


Key Features of the DEWALT DW083CG Green Beam 3 Spot Laser:

  • Accuracy: Rated at +/-1/8 inch at 30 feet for reliable measurements.

  • Laser Projection: Projects horizontal and vertical dots using three beams (plumb up, plumb down).

  • Self-Leveling Range: Provides electronic self-leveling within +/-5 degrees.

  • Magnetic Mount: Built-in magnetic pivoting bracket enables attachment to metal structures.

  • Durability Ratings: IP54 rated for dust and water resistance; tested to function after drops up to 1 meter.

  • Batteries Included: Operates on two AA batteries (included) for convenience out of the box.

  • Indicators: Equipped with visual and audible level indicators for user feedback during operation.

  • Slope Capability: Supports slope adjustments up to +/-10 degrees as needed by specific tasks.
