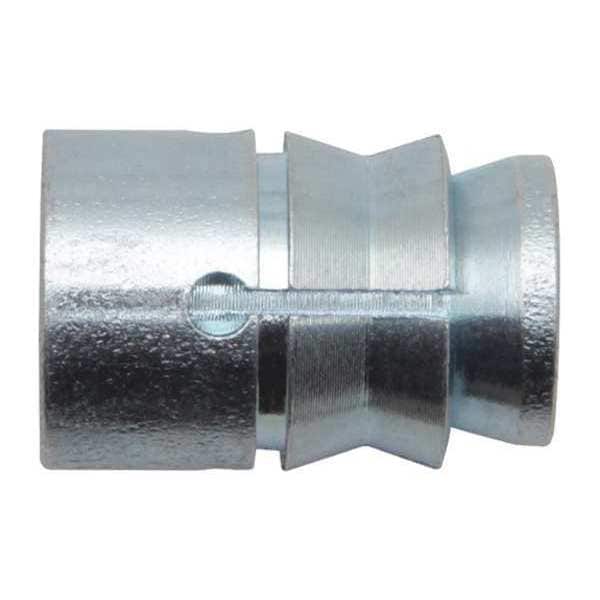

Mini-Undercut Flush Embedment Anchor, 3/8" Dia, 3/4" L, Steel Zinc Plated, 100 PK

  • Mfr # PFM2111820

  • Zoro # G1724079

product price:  $64.69
/pk 100, $0.65/ea

Key Features

For Use In
Concrete
Anchor Diameter
3/8"
Overall Length
3/4"
Sub-Brand
Mini-Undercut
Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PFM2111820
Zoro #
G1724079
UPC #
075352306711
Country of Origin
China

Dimensions

Anchor Diameter
3/8"
Overall Length
3/4"
Drill Bit Size
5/8"
Thread Size
3/8"-3/4
Thread Depth
0.75 in
Min. Hole Depth
3/4 in
Bolt Dia.
3/8 in
Bolt or Rod Size
3/8 in
Minimum Hole Depth
3/4 in
Wire Rope Length
3/4 in

Details

Item
Flush Embedment Anchor
For Use In
Concrete
Sub-Brand
Mini-Undercut
Material
Steel
Finish
Zinc Plated
Agency Compliance
FM, ICC-ES
Meets/Exceeds
ACI 355.2, ASTM E488, ESR-3912, FM, ICC-ES
Ultimate Tension (Lbs.)
1770 @ 4000 psi
Drive Tools
405F98, 405F99
Allowable Shear (Lbs.)
570 @ 4000 psi Concrete
Drop-In Anchor Type
Non-Flange
Recess
3/4 in
Ultimate Shear in 3000 PSI Concrete (Lb.)
1,975 lb
Allowable Tension (Lbs.)
1770 lb @ 4000 psi
Installation Turns
Drive The Anchor Into The hole Until The Shoulder of The Anchor is Flush with The Base Material
Ultimate Tension in 3000 PSI Concrete (Lb.)
1,535 lb
Material Grade
Grade 36
Ultimate Tension @ 4000 psi
1,770 lb
Ultimate Shear @ 4000 psi
2,275 lb
Thread Type
Coarse
Series
Mini-Undercut+
Flange Style
Flush
Removable
Removable
Industry Standards
2012 IBC/IRC, 2015 IBC/IRC, 2018 IBC/IRC, 2021 IBC/IRC, ACI 355.2, ICC ES ESR-3912
Material Quality Standards
ASTM E488
Compatible Material
Concrete
System of Measurement
Inch
Material Grade/Class
Not Graded
Manufacturer Location
Globally Sourced
Installation Method
Drop-In Anchor Setting Tool

Description

Drop-In Anchor, Anchor Diameter 3/8 in, Overall Length 3/4 in, Thread Size 3/8 In.-16, Thread Depth 0.75 in, Thread Type Coarse, Material Steel, Finish Zinc Plated, Flange Style Flush, Drill Bit Size 5/8 in, Minimum Hole Depth 3/4 in, System of Measurement Inch, Bolt or Rod Size 3/8 in, Material Grade/Class Not Graded, Compatible Material Concrete, Removable Removable, Manufacturer Location Globally Sourced, Compatible with Grainger Part Number 405F98
