  11. PILOT POINT 3/16" DRILL BITS -EA

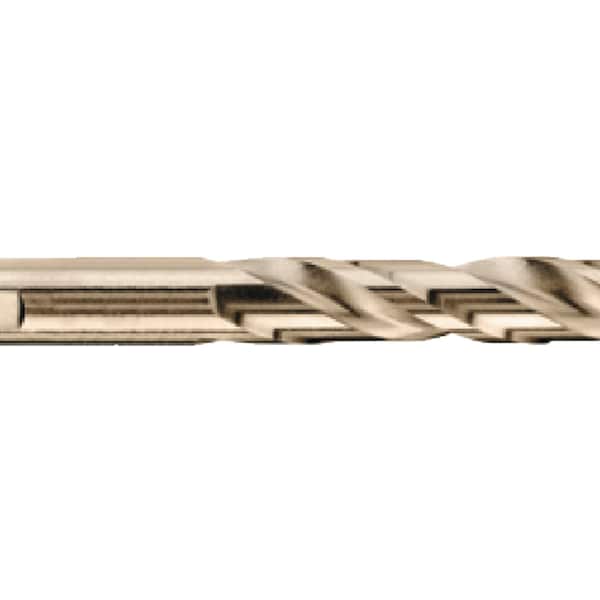

Dewalt PILOT POINT 3/16" DRILL BITS -EA DW1912B - main

PILOT POINT 3/16" DRILL BITS -EA

  • Mfr # DW1912B

  • Zoro # G702578644

product price: $3.15
/ea
Sold in multiples of 3 for $9.45

Key Features

Drill Bit Size
3/16 in
Overall Length
3-1/2 in
Drill Bit Point Angle
135 Degrees
Material
High Speed Steel
Finish
Gold Ferrous Oxide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DW1912B
Zoro #
G702578644
UPC #
288773025158
Country of Origin
China

Dimensions

Drill Bit Size
3/16 in
Overall Length
3-1/2 in
Flute Length
2.31 in
Cutting Length
2.31 in

Details

Drill Bit Point Angle
135 Degrees
Material
High Speed Steel
Finish
Gold Ferrous Oxide
Shank Type
Straight
Cutting Direction
Right Hand
Flute Type
Spiral
Decimal Equivalent
0.1875 in
Application
Drilling in Wood, Metal, or Plastic
Point Type
Pilot

Description

The DEWALT DW1912B Pilot Point 3/16" Drill Bit is suitable for drilling holes in wood, metal, or plastic. Its Pilot Point tip is intended to assist with starting the drill bit upon contact, while the high speed steel construction and gold ferrous oxide finish contribute to durability during use.


Key Features of the DEWALT DW1912B Pilot Point 3/16" Drill Bit:

  • Pilot Point Tip: Intended to assist with starting the drill bit upon contact.

  • No-Spin Shank: Straight shank design intended to limit spinning in the chuck during operation.

  • Tapered Web: Supports structural integrity and helps reduce breakage under load.

  • Material & Finish: Made from high speed steel with a gold ferrous oxide finish for added wear resistance.

  • Application: Suitable for right-hand drilling in wood, metal, or plastic materials.

  • Size Markings: Size markings are located above the shank to prevent markings from wearing away over time.

  • Drill Bit Size & Dimensions: 3/16 inch diameter; overall length of 3-1/2 inches; flute length of 2.31 inches; spiral flute type with a 135-degree point angle.
