UltraCon, PK500
- Mfr # DFM5ELG965S
- Zoro # G722639028
product price:Â
$
190.99
/pk of 500, $0.38/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Material
Steel
Removable
Removable
Seismic Approved
Yes
Ultimate Shear Strength (4,000 psi Concrete)
3,400 lb
Head Type
Flat
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DFM5ELG965S
- Zoro #
- G722639028
- UPC #
- 0075352340357
- Country of Origin
- Taiwan, Province of China
- Item
- UltraCon Screw Anchor
- Material
- Steel
- Removable
- Removable
- Seismic Approved
- Yes
- Ultimate Shear Strength (4,000 psi Concrete)
- 3,400 lb
- Head Type
- Flat
- Tip Type
- Self-Tapping
- Ultimate Tension Strength (4,000 psi Concrete)
- 3,560 lb
- Features
- 5/16 in Diameter Provides Increased Shear and Tensile Strength, Installed with a Standard ANSI Bit, Stalgard(R) Coating Provides 1000 Hours of Salt Spray Protection when Tested in Accordance with ASTM B117
- System of Measurement
- Inch
- Edge Distance
- 1 1/4 in
- Minimum Ultimate Tension Strength
- 755 lb
- Maximum Ultimate Tension Strength
- 3,560 lb
- Series
- UltraCon
- Material Grade/Class
- Case Hardened
- Screw Anchor Type
- Screw Anchor
- Maximum Ultimate Shear Strength
- 3,400 lb
- Industry Standards
- FL29068.2, Miami-Dade, NOA 21-0113.01
- Compatible Material
- Concrete, Masonry
- Finish
- Zinc-Plated
- Material Quality Standards
- ASTM E488
- Drive Type
- Torx
- Minimum Ultimate Shear Strength
- 440 lb
- Traction Material
- Steel
Dimensions
- Head Height
- 0.125 in
- Overall Length
- 3 1/4 in
- Drill Bit Size
- 1/4 in
- Head Width
- 0.313 in
- Maximum Material Thickness
- 3 in
- Anchor Diameter
- 5/16 in
- Thread Length
- 1 3/4 in
- Body Length
- 3 1/4 in
- Minimum Installation Depth
- 1/4 in
Description

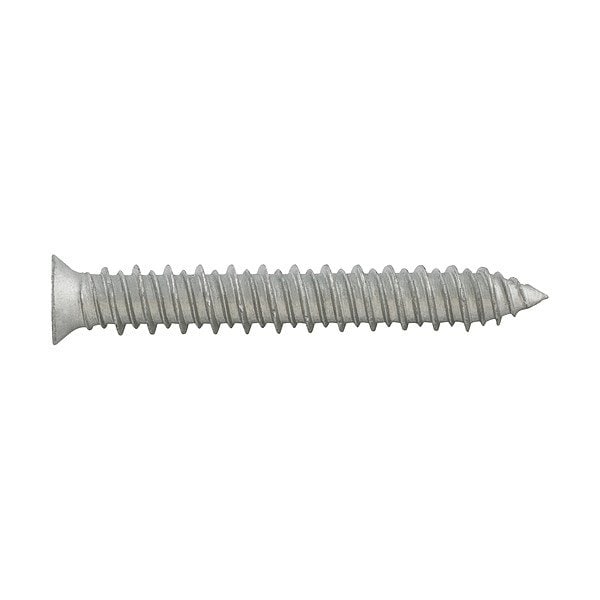

UltraCon Screw Anchor, Anchor Diameter 5/16 in, Overall Length 3 1/4 in, Thread Length 1 3/4 in, Head Type Flat, Head Width 0.313 in, Head Height 0.125 in, Drive Type Torx, Material Steel, Finish Zinc-Plated, Material Grade/Class Case Hardened, Removable Removable, Drill Bit Size 1/4 in, Screw Anchor Type Screw Anchor, System of Measurement Inch, Includes Not Applicable, Maximum Material Thickness 3 in, Maximum Ultimate Shear Strength 3,400 lb, Maximum Ultimate Tension Strength 3,560 lb
