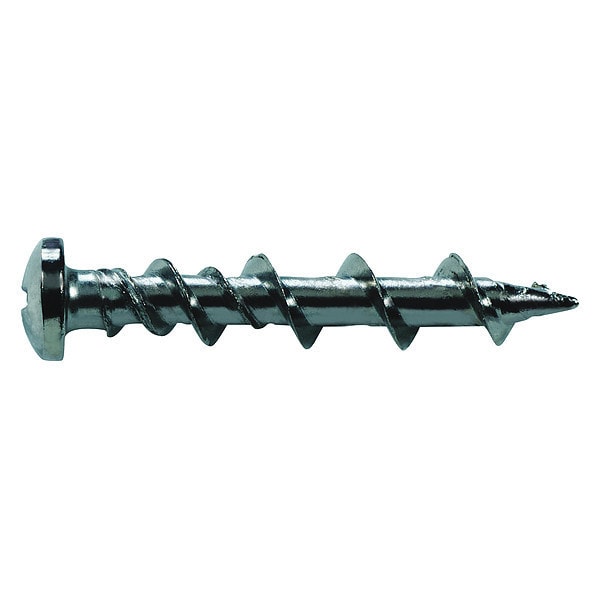

Wall-Dog Wall Anchor Screw, 1-1/4" L, Steel, 100 PK

  • Mfr # 02330-PWR
  • Zoro # G1966697
product price:
$
15.85
/pk of 100, $0.16/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Compatible Material
Brick, Concrete, Drywall, Plaster
Anchor Diameter
1/4"
Anchor Length
1-1/4"
Thread Size
1/4"
Sub-Brand
Wall-Dog
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
02330-PWR
Zoro #
G1966697
UPC #
753520233044
Country of Origin
Taiwan, Province of China
Item
Wall Anchor Screw
Compatible Material
Brick, Concrete, Drywall, Plaster
Sub-Brand
Wall-Dog
Material
Steel
Head Type
Pan
Drive Type
Phillips
Seismic Approved
No
ICC Approved for Cracked Concrete
No
Application
High-Profile Threads for Easy Fastening Into Wallboards and Other Masonry Base Materials
ICC Approved for Un-Cracked Concrete
No
Material Grade
1018
Anchor Screw Type
Concrete Anchor Screw
Type
Screw
Manufacturer Location
Globally Sourced
Tip Type
Pointed
Removable
Removable
Material Grade/Class
1018
Series
Wall-Dog
Screw Anchor Type
Self-Threading Anchor
System of Measurement
Inch
Finish
White Ultrashield(TM)
Shell Material
Steel
Ultimate Shear Strength (4,000 psi Concrete)
1,030 lb
ICC Approval Type
Not Rated
Traction Material
Steel

Dimensions

Anchor Diameter
1/4"
Anchor Length
1-1/4"
Thread Size
1/4"
Drill Bit Size
3/16"
Wall Thickness
1/2 in
Min. Hole Depth
3/4"
Max. Work Thickness
1/2"
Min. Wall Thickness
1/2"
Size
1/4"
Screw Size
1 1/4 in
Overall Length
1 1/4 in
Thread Length
1 1/4 in
Minimum Installation Depth
3/4 in
Body Length
1 1/4 in
Screw Length
1-1/4"
Wire Rope Length
1 1/4 in
Length
1 1/4 in

Description

One Piece Self-Threading Wall Anchor, Anchor Diameter 1/4 in, Screw Size 1 1/4 in, Overall Length 1 1/4 in, Thread Length 1 1/4 in, Head Type Pan, Head Width Not Applicable, Drive Type Phillips, Traction Material Steel, Finish White Ultrashield(TM), Material Grade/Class 1018, Removable Removable, Compatible Material Brick, Concrete, Drywall, Plaster, Drill Bit Size 3/16 in, Screw Anchor Type Self-Threading Anchor, System of Measurement Inch, Includes Not Applicable
