This item is Discontinued.

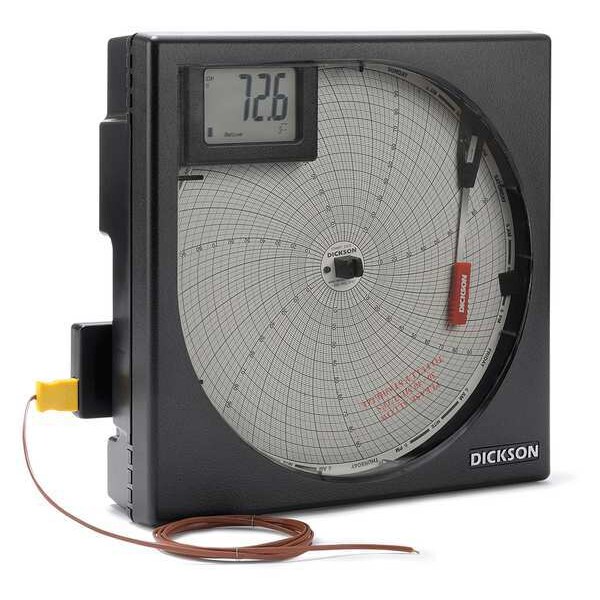

Dickson Temperature Chart Recorder, NIST KT8P3NIST

Temperature Chart Recorder, NIST (Discontinued)

  • Mfr # KT8P3NIST
  • Zoro # G6025686
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KT8P3NIST
Zoro #
G6025686
UPC #
-
Country of Origin
United States

Dimensions

Depth (In.)
3.1 in
Length (In.)
9.2 in
Width (In.)
9.2 in
Chart Size (In.)
8 in
Manufacturers Warranty Length
1 yr
Recorder Depth
3.1 in
Recorder Height
9.2 in
Recorder Width
9.2 in
Manufacturer Warranty Length
1 yr
Circular Chart Diameter
8 in
Battery Size
AA

Details

Type
Temperature (Type K Thermocouple)
Recording Time (Day)
1, 31, 7
Temp. Range
-20 Degrees to 20 Degrees F/C, -50 Degrees to 50 Degrees F/C, 0 Degrees to 100 Degrees F/C, 0 Degrees to 1000 Degrees F/C, 0 Degrees to 150 Degrees F/C, 0 Degrees to 2000 Degrees F, 0 Degrees to 250 Degrees F/C, 0 Degrees to 500 Degrees F/C, 50 Degrees to 150 Degrees F/C
Accuracy
+/-1.8 Degrees F from -22 Degrees to 122 Degrees F
Remote Probe
Yes
Alarm
yes
Power Supply
120 to 240V AC Adapter, 12V DC, with (4) AA Batteries for Back-up
Display
Yes
Item
Circular Chart Recorder
Battery Life
Backup 72 hr
Temp. Accuracy
+/-1.8F from -22 Degrees to 122 Degrees F ( +/-1 Degrees C from -30 Degrees to 50 Degrees C)
Calibration Certificate
NIST
Includes
4 ft Wire Bead Probe, AC Adapter, Red Pen
Digital Readout
yes
Data Storage
No
Properties Recorded
Temperature
Power Source
AC Adapter, Battery
Parameters Measured
Temperature Degrees C, Temperature Degrees F
Minimum Temperature Measured Degrees F
32 Degrees F
Product Type
Circular Chart Recorders
Maximum Temperature Measured Degrees C
50 Degrees C
Number of Batteries Required
4
Accuracy Degrees F
+/-1.8 Degrees
Accuracy Degrees C
+/-1.0 Degrees
Calibration Certificate Type
NIST
Number of Probes Included
1
Maximum Temperature Measured Degrees F
120 Degrees F
Battery Run Time
72 hr
Display Type
Digital
Minimum Temperature Measured Degrees C
0 Degrees C
Batteries Included
Yes
Alert Type
Sound
Time Recorded
24 hr, 7 day

Description

Circular Chart Recorder, Product Type Circular Chart Recorders, Recorder Height 9.2 in, Recorder Width 9.2 in, Recorder Depth 3.1 in, Circular Chart Diameter 8 in, Minimum Temperature Measured Degrees F 32 Degrees F, Maximum Temperature Measured Degrees F 120 Degrees F, Parameters Measured Temperature Degrees C, Temperature Degrees F, Time Recorded 24 hr, 7 day, Accuracy Degrees F +/-1.8 Degrees , Alert Type Sound, Maximum Relative Humidity Measured Not Applicable
