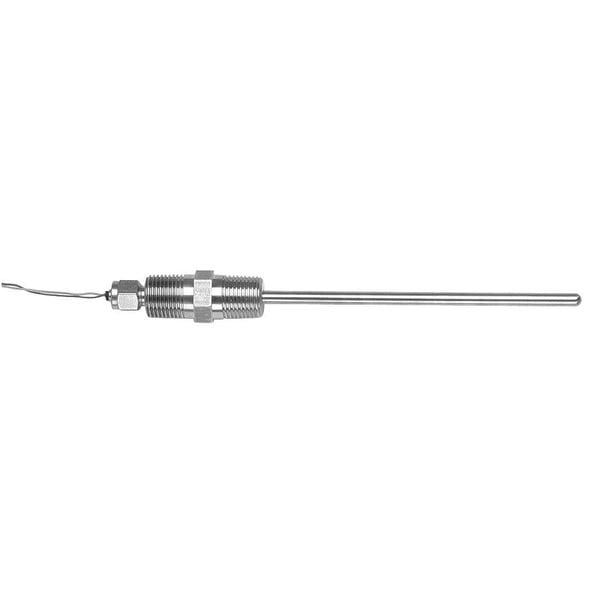

Thermocouple Probe, Bare Wire, Type K

  • Mfr # DSTPA1223204

  • Zoro # G5962817


product price: $155.99
/ea
Free Shipping & Returns

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-109 Degrees to 900 Degrees
Temp. Range (C)
-78 Degrees to 482 Degrees
Probe Length
4 in
Primary Measuring Element
Thermocouple
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DSTPA1223204
Zoro #
G5962817
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
4 in
Probe Wire Length
3 in
Wire Length
10"
Manufacturers Warranty Length
2 yr
Probe Dia.
1/4 in
Manufacturer Warranty Length
2 yr
Cable Length
3 in
Probe Diameter
0.25 in
Probe Size
1/4 in x 4 in
Probe Tip Diameter
0.25 in

Details

Item
Thermocouple Probe
Sensor Type
Thermocouple
Temp. Range (F)
-109 Degrees to 900 Degrees
Temp. Range (C)
-78 Degrees to 482 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connector
Bare Wire
Probe Connection Type
Bare Wire
Probe Contact Material
316 Stainless Steel
Accuracy
+/-2 Degrees F - 530 Degrees F, +/-1.1 Degrees C - 277 Degrees C
Response Time
30 to 60 sec
Probe Material
316 Stainless Steel
Process Connection
1/2 in NPT, Compression Fitting
For Use With
Wahl Digistem Thermocouple Meter
Includes Thermowell
No
Junction Type
Grounded
For Air
No
For Surfaces
No
Fitting Type
Compression
Probe Sheath Material
316 Stainless Steel
Minimum Temperature F
-109 Degrees F
For Liquids and Gels
Yes
Connector Type
Bare Wire
Head Material
316 Stainless Steel
Head Connection
1/2 in NPT
Maximum Temperature F
900 Degrees F
Thermocouple Type
Type K
Tip Style
Rounded
Temperature Range
-109 Degrees to 900 Degrees F/-78 Degrees to 482 Degrees C
Probe Bend
Straight
Minimum Temperature C
-78 Degrees C
For Gases
Yes
Process Mounting
1/2 in NPT Compression
For Solids
No
For Application
Liquid
Maximum Temperature C
482 Degrees C
Maximum Temperature °F
900 Degrees F
Minimum Temperature °C
-78 Degrees C
Maximum Temperature °C
482 Degrees C
Minimum Temperature °F
-109 Degrees F
Minimum Temperature °C
-78 Degrees C
Maximum Temperature °F
900 Degrees F
Maximum Temperature °C
482 Degrees C
Minimum Temperature °F
-109 Degrees F

Description

Thermocouple Probe, Type K, Grounded, For Application Liquid, 1/2 in NPT Compression, Bare Wire, Probe Size 1/4 in x 4 in, Cable Length 3 in, -109 Degrees to 900 Degrees F/-78 Degrees to 482 Degrees C, Thermocouple
