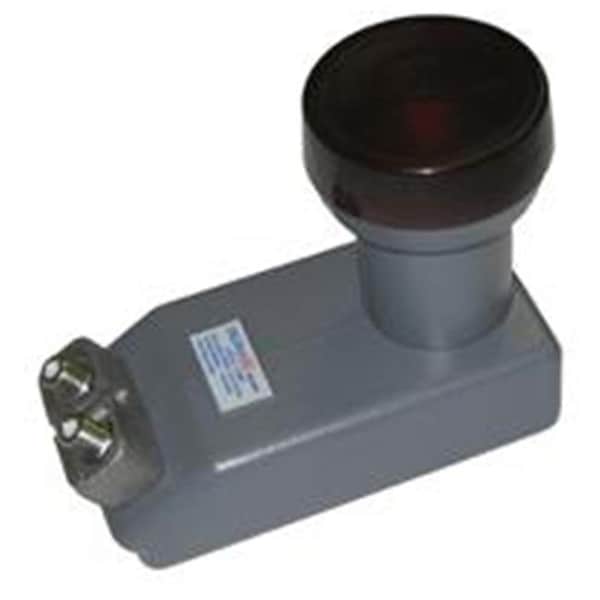

Digiwave DGL - 904D - Circular Dss Apples LNBF

Features A plus LNB - Circular Dss Dual LNBF This is high quality LNB using higher technology design; make the noise level to minimal and maximal the signal level Input Freq. Range - 12.2 - 12.7 MHz Output Freq. Range - 950 - 1450 MHz Conversion Gain - 50 min. 62 max. over temperature Gain Variation - 0.5dB max. across any 24MHz segment 5dB Max. across the 500MHz bandwidth Noise Figure - 1.1dB Max. entire operating temperature range Local Oscillator Frequency Stability - 11.25GHz at 22 degrees C after 15 minutes warm up period 11.25GHz at -35 degrees C Output VSW - 2 to 1 Image Rejection - 40dB Min. Output 1 dB Gain Compression Point - 0dB Min. Polarization Isolation - 20dB Min. Power Requirements - Voltage Level 10.5 to 14 Vdc RHP 15.5 to 21 Vdc LMP Current - 120mA
