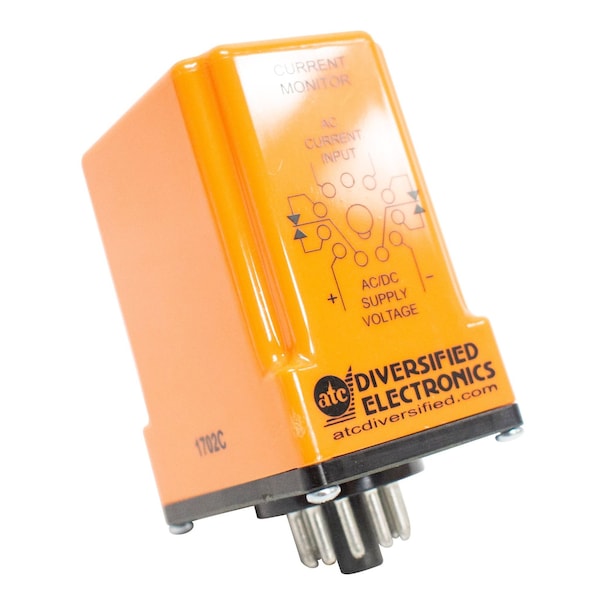

CML AC Over Current Monitor

The CML Series is used to detect OVER CURRENT conditions. The internalrelay energizes Pick-up when the monitored current exceeds thepreset trip point for longer than the adjustable time delay period. Theadjustable delay is incorporated to prevent nuisance tripping caused bymotor inrush currents. The CML has the MANUAL RESET feature. The internalrelay de-energizes Drop-out when the reset button is pressed.If the current is below the trip point when the button is released, therelay will remain de-energized. If the current is above the trip point, therelay will re-energize.An External CT may be used to extend the range of the Current Monitor.
