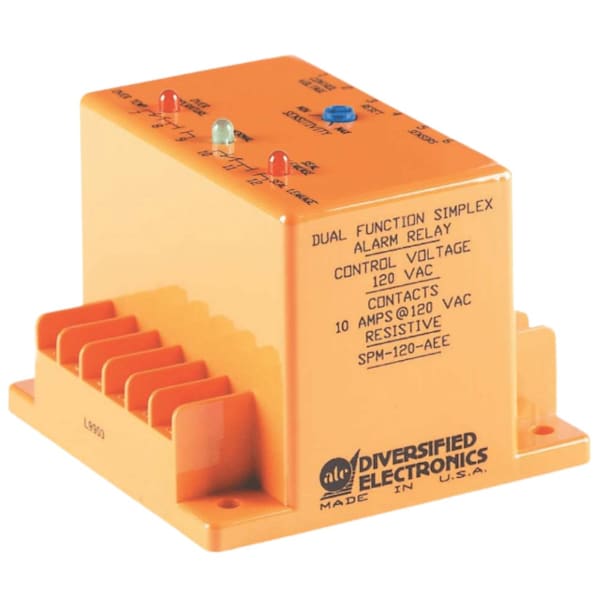

SPM Series Submersible Pump Monitor Dual Function Alarm Relay

The ATC Diversified Submersible Pump Monitor is a specialized control for monitoring the shaft seal and stator temperature of a submersible pump motor. Seal leakage is detected by either a resistive float switch or a pair of conductive probes installed in the seal cavity. Over-temperature is detected by a normally-closed-low temperature switch mounted on the stator. The over-temperature function incorporates a bistable relay that retains its position during power failures. For S models over-temperature reset can be configured by changing the reset switch.
