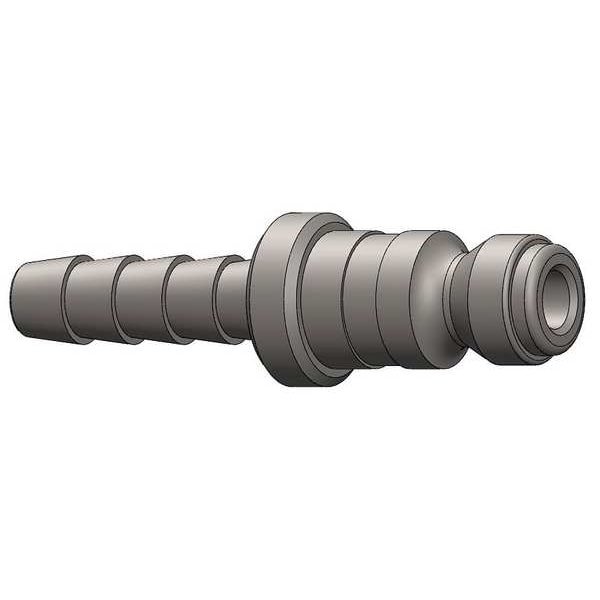

Barb to Automotive Plug, Barb, 1/4, Steel
Mfr # J2S3
Zoro # G1773545
Key Features
Specifications
Product Information
- MFR #
- J2S3
- Zoro #
- G1773545
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Hose Fitting Size
- 3/8 in
- Coupling Size
- 1/4 in
- Barb Size
- 3/8 in
- Overall Length
- 2 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 9/16 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Tru-Flate-Automotive
- Material
- Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Hose Barb
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 736.23 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- No
- Color
- Silver
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- On End of Hose or Pipe
- Barbed
- Yes
- Max. Working Pressure @ 70 F
- 500 psi
- For Hose I.D.
- 3/8 in
- For Use With
- Automotive Style
Description
The DIXON - J2S3 is a rapid connect/disconnect hose coupling plug designed for connection and disconnection without the use of tools, when used as specified at the end of hoses or pipes. It features a sleeve locking mechanism and is compatible with automotive-style fittings that meet the Tru-Flate-Automotive interchange standard. This coupling is intended for use in pneumatic, hydraulic, and general fluid applications where rapid hose changes are required. The plug connects using a hose barb of 3/8 in and mates to a 1/4 in coupling size, configured with nitrile O-rings for pressure sealing, without an integrated valve.
Key Features:
- Material: Steel body with zinc plated finish.
- Connection Type: Hose Barb with male fitting gender.
- Seal Material: Nitrile O-rings for seal capability provided by nitrile O-rings (as specified).
- Barb Size and Hose Fitting Size: 3/8 in for hose inner diameter compatibility.
- Overall Length: 2 in.
- Max Outside Diameter: 9/16 in.
