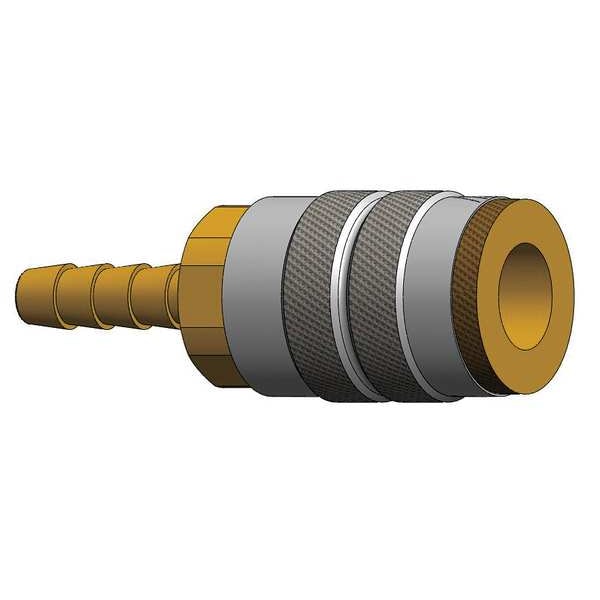

Barb to Indust. Coupler, Barb, 1/4, Steel
Mfr # 2FS2
Zoro # G2245476
Key Features
Specifications
Details
- MFR #
- 2FS2
- Zoro #
- G2245476
- UPC #
- -
- Country of Origin
- United States
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Steel
- Coupling Component
- Socket
- Hose Fitting Gender
- Male
- Connection Type
- Hose Barb
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 764.55 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- On End of Hose or Pipe
- Valve Type
- Tubular
- Barbed
- Yes
- Max. Working Pressure @ 70 F
- 500 psi
- For Hose I.D.
- 1/4 in
Description
The DIXON - 2FS2 is a quick-connection hose coupling designed for connects and disconnects using the sleeve locking mechanism at the end of hoses or pipes. It features a sleeve locking mechanism and includes a tubular valve to control fluid or air flow. This coupling is compatibility: for 1/4 in hose inner diameter and 1/4 in barb size, intended to form a sealed connection when installed with compatible hose/barb specifications for compatible compressed air and fluid transfer applications within the stated specifications. Its zinc-plated steel construction supports rated for operation within a temperature range of -40°F to 250°F and rated maximum working pressure: 500 psi at 70°F.
Key Features:
- Hose Barb connection type with 1/4 in barb size and 1/4 in hose fitting size.
- Coupling size and body size of 1/4 in suitable for standard industrial interchange.
- Includes a socket coupling component with a sleeve locking type.
- Maximum flow rate of 764.55 liters per minute.
- Overall length of 2.5 inches and maximum outside diameter of 7/8 inch.
- Constructed from zinc-plated steel.
- Rated maximum working pressure: 500 psi at 70°F.
- Rated temperature range: -40°F to 250°F.
- Hose fitting gender is male.
