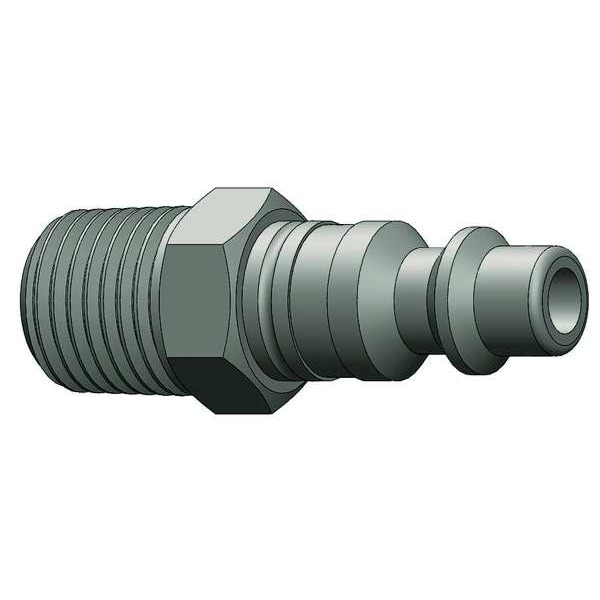

Coupler Plug, (M)NPT, 1/2,303 SS
Mfr # D4M4-S
Zoro # G1659235
product price:
$
23.19
/ea
Key Features
Interchange Type
Industrial
Material
Stainless Steel
Coupling Component
Plug
Hose Fitting Gender
Male
Connection Type
Threaded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- D4M4-S
- Zoro #
- G1659235
- UPC #
- -
- Country of Origin
- United States
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Stainless Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 2,576.83 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- No
- Color
- Silver
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- On End of Hose or Pipe
- Max. Working Pressure @ 70 F
- 500 psi
- Barbed
- No
- For Hose I.D.
- 1/2 in
- For Use With
- Industrial Style
- Connection Thread Type
- NPT
Description
The DIXON - D4M4-S is a quick connect hose coupling supports tool-free connection and disconnection at the coupling interface. is designed to form a sealed connection using the specified nitrile seal. is compatible with water, air, and fluid lines when used within the specified max working pressure and temperature ranges. Constructed of 303 stainless steel with a zinc-plated finish, it features a male hose fitting with a 1/2 inch size and an NPT connection type. The coupling employs a sleeve locking mechanism and is a plug component for hose end connections, for use in hose change applications in various pneumatic, hydraulic, and general-purpose applications.
Key Features:
- Body and coupling size: 1/2 inch
- Hose fitting gender: Male
- Connection type: NPT with thread size 1/2" -14
- Material: 303 stainless steel with zinc-plated finish
- Seal material: Nitrile
- Max. flow rate: 2,576.83 liters per minute
- Temperature range: -40°F to 250°F
- Overall length: 2.38 inches
- Max. outside diameter: 1 inch
- Coupling locking type: Sleeve
- Application: On end of hose or pipe
- Barbed: No
- Includes valve: No
- Interchange type: Industrial
