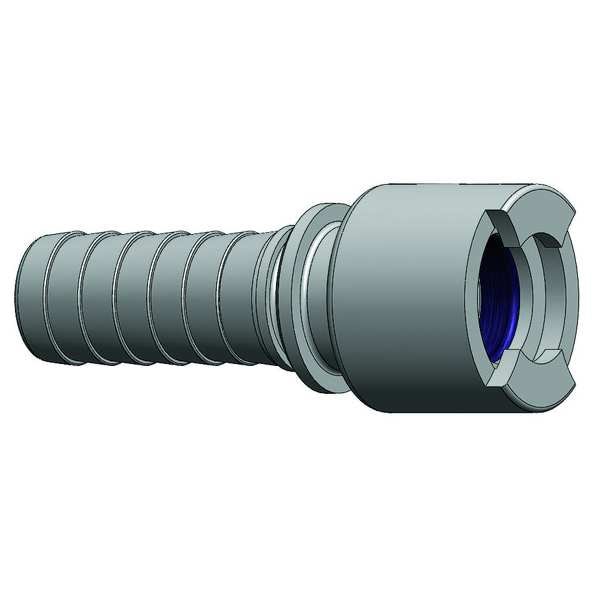

Female to Bowes Coupler, Barb, 1/2, Brass
- Mfr # 4NS4-B
- Zoro # G0402464
Key Features
Specifications
Details
- MFR #
- 4NS4-B
- Zoro #
- G0402464
- UPC #
- -
- Country of Origin
- United States
- Item
- Quick Connect Air Coupling
- Interchange Type
- Bowes
- Material
- Brass
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Hose Barb
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 5,776.64 lpm
- Coupling Locking Type
- Push-to-Connect
- Seal Material
- Nitrile
- Includes Valve
- No
- Color
- Yellow
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- On End of Hose or Pipe
- For Use With
- Bowes Style
- Max. Working Pressure @ 70 F
- 300 psi
- Barbed
- Yes
- For Hose I.D.
- 1/2 in
- Shell Material
- Brass
Description
The DIXON - 4NS4-B is a quick connect hose coupling designed for rapid, tool-free connection and disconnection of hoses or equipment using a push-to-connect locking mechanism. Connects to hose ends using a 1/2 in barb fitting and is compatible with 1/2 in inner-diameter hoses. Includes a seal (material: nitrile) for use in pneumatic, hydraulic, and general fluid line applications. This coupling is compatible with the specified Bowes-style interchange connection standard and connects via a 1/2 inch hose barb. Constructed of brass with a zinc-plated finish.
Key Features:
- Coupling component: Plug with a male hose fitting gender.
- Connection type: Hose barb with a barb size and hose fitting size of 1/2 in.
- Coupling size: 1/2 in with push-to-connect locking.
- Seal material: Nitrile, suitable for a temperature range of -40°F to 250°F.
- Overall length: 3.38 in; maximum outside diameter: 1.31 in.
- Finish/coating: Zinc plated.
- Does not include a valve component.
