Female to Bowes Coupler, (F)NPT, 1/2, Brass
Mfr # 4NF4-B
Zoro # G0342657
Key Features
Specifications
Product Information
- MFR #
- 4NF4-B
- Zoro #
- G0342657
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Hose Fitting Size
- 1/2 in
- Coupling Size
- 1/2 in
- Thread Size
- 1/2"-14
- Overall Length
- 1 5/8 in
- Body Size - Quick Connect Air Couplings
- 1/2 in
- Max. Outside Dia.
- 1 9/16 in
- Wire Rope Length
- 1 5/8 in
- Length
- 1 5/8 in
Description

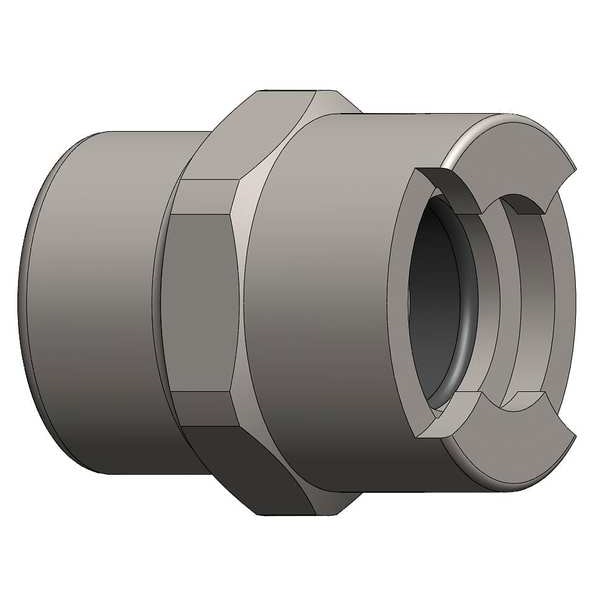

The DIXON - 4NF4-B is a quick connect hose coupling with push-to-connect locking for tool-free connection/disconnection of compatible hoses/pipe ends. Made from brass and finished with zinc plating, this socket-type coupling forms a seal at the connection when installed and used within the stated specifications and is compatible with specified fluid or air line applications. is for use at the end of a hose or pipe and with compatible fittings. The coupling accommodates a hose fitting size and hose inner diameter of 1/2 inch, with a nominal thread size of 1/2" -14 female NPT connection.
Key Features:
- Material: Brass with zinc plated finish
- Connection Type: Female NPT, 1/2" -14 thread size
- Coupling Component: Socket with push-to-connect locking type
- Hose Fitting Size: 1/2 inch; Hose Inner Diameter: 1/2 inch
- Application: is for use at the end of a hose or pipe and is compatible with Bowes-style fittings and interchange standards when matched to the stated hose fitting size and NPT connection size
- Maximum Working Pressure: maximum working pressure is 300 psi at 70°F
- Maximum Flow Rate: maximum flow rate is 5,776.64 L/min under rated conditions
- Seal Material: Nitrile
- Operating Temperature Range: operating temperature range is -40°F to 250°F when used within specifications
- Overall Length: 1.63 inches; Maximum Outside Diameter: 1.563 inches
- Barbed: No
